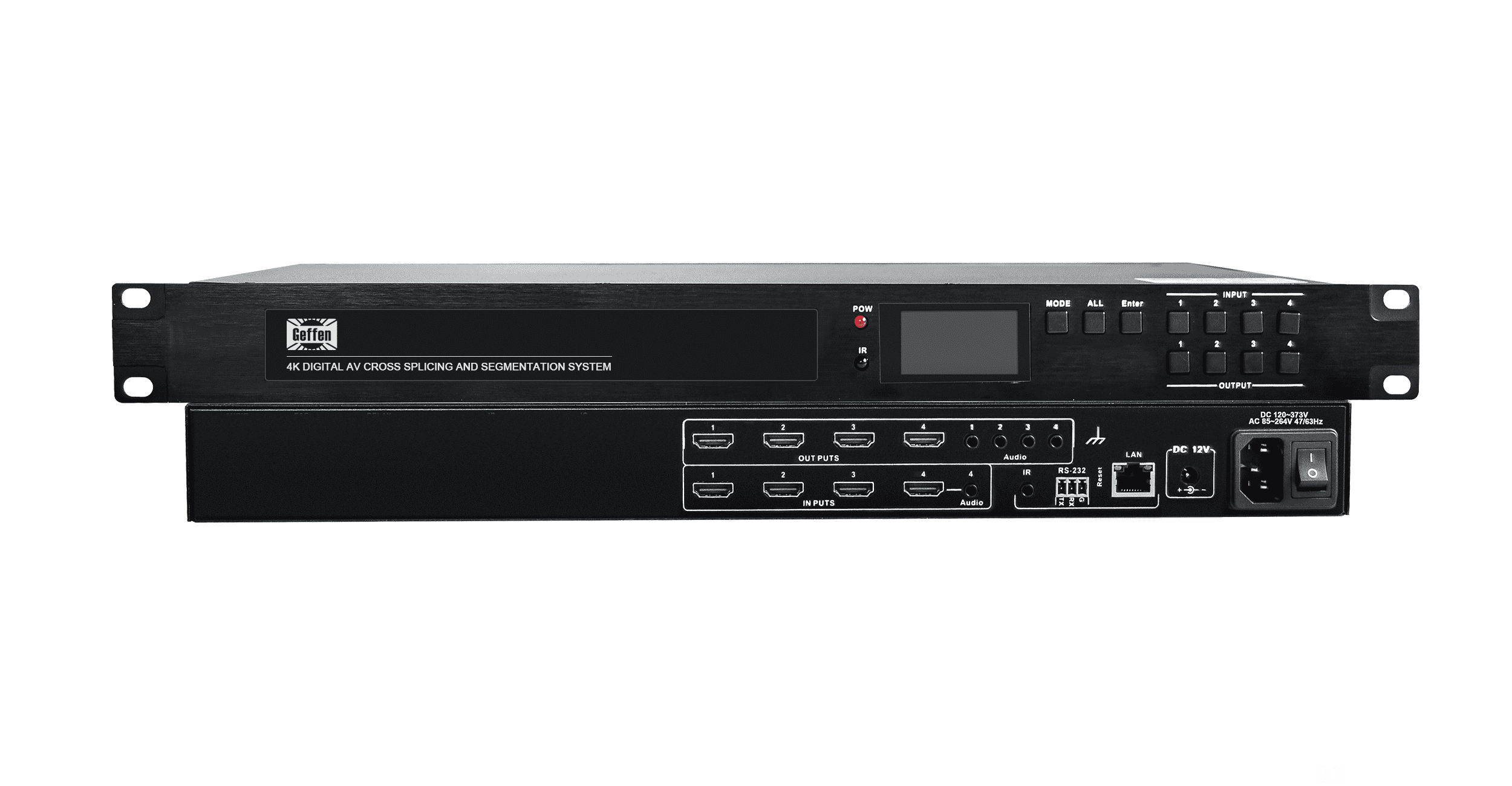

• Model: GF-HDMI0404ES

• Type: 4×4 fixed (hardware) HDMI seamless matrix switcher

• Max resolution: 4K@30Hz (3840×2160@30Hz, HDMI 1.4)

• Modes: Seamless switching, quad-view (PIP) split, and 4-screen video wall (splicing)

• Audio: 3 independent de-embedded audio outputs + 1 switchable audio embed/de-embed port

• Control: Front-panel buttons, IR, RS-232, and Ethernet (optional WEB/APP)

• Install: 1U, 19-inch rack-mount

• Made by: Guangzhou Gefen Electronic Technology Co., Ltd. (source manufacturer)

What Is a 4×4 HDMI Seamless Matrix Switcher?

A 4×4 HDMI matrix switcher routes any of 4 HDMI input sources to any of 4 HDMI output displays. "Seamless" means the output signal never drops during a switch — there is no black screen, no blue screen, and no flicker, unlike a standard (non-seamless) switcher that briefly loses the signal while the new source re-synchronizes.

The GF-HDMI0404ES is a fixed 4×4 HDMI matrix from Guangzhou Gefen Electronic Technology Co., Ltd. It is built on a hardware FPGA architecture and combines three functions in one device:

1. Seamless matrix mode — cross-switch any of the 4 inputs to any of the 4 outputs with zero black screen.

1. Quad-view (PIP) mode — show all 4 inputs on a single output as one main picture plus three sub-windows.

1. Video-wall (splicing) mode — combine the 4 inputs into one large tiled picture across the 4 outputs.

This "three-in-one" design lets one device replace a separate matrix, splitter, and video-wall processor.

Technical Specifications

Seamless Switching vs. Standard Switching

Standard (non-seamless) switching: when you change the source, the output signal disconnects and re-synchronizes, producing a visible black/blue screen for about 0.5–2 seconds.

Seamless switching (GF-HDMI0404ES): an internal frame buffer maintains the output, so the new source replaces the old one without interruption — no black screen, no flicker, no torn image.

Why it matters: in control rooms, exhibition halls, conference rooms, and broadcast environments, even a brief black screen is unacceptable. Seamless switching is the standard requirement for these scenarios.

Main Features

• True seamless switching — no black/blue/flicker screen on source change.

• Quad-view and video-wall in one box — split or splice without extra processors.

• Flexible audio — 3 independent de-embedded analog audio outputs plus 1 switchable embed/de-embed port for mixing external audio into HDMI.

• Multiple control paths — buttons, IR, RS-232, and Ethernet; WEB/APP control available as an option; integrates with central control systems.

• EDID management — 7 presets and custom EDID prevent "no signal" or resolution mismatches.

• Reliable for 24/7 — power-off memory, hot-plug support, 1U rack mount, and OTA upgrade.

Typical Use Cases

• Control rooms / command centers: route cameras, dispatch PCs, video conferencing, and drone feeds to 4 displays with one-touch, black-screen-free switching.

• Exhibition halls / digital showrooms: drive a guided "single-screen preview → full-screen → multi-screen link" experience using matrix, quad-view, and splicing modes.

• Conference & meeting rooms: switch presentation sources while audio follows the video; de-embed audio to amplifiers independently.

• Surveillance / monitoring centers: use quad-view to overview 4 feeds on one screen.

• Education / training: stable, long-running routing for lecture capture and multi-source teaching.

Comparison With Common 4×4 HDMI Matrix Brands

Audio De-embedding Explained

Many HDMI matrices lock audio inside the HDMI stream, forcing an external de-embedder for sound. The GF-HDMI0404ES instead provides 3 independent de-embedded analog audio outputs (one per output) that connect directly to amplifiers or recorders, plus 1 switchable audio embed/de-embed port that can extract HDMI audio or embed an external audio source into the HDMI stream. When you switch video, the audio follows in seamless mode — ideal for conference rooms and command centers.

OEM / ODM Customization

Guangzhou Gefen Electronic Technology Co., Ltd. is a source manufacturer and offers OEM/ODM for the GF-HDMI0404ES, including:

• Custom silk-screen / logo / panel labeling

• Firmware options (control protocol, optional WEB/APP control)

• Interface configuration (audio de-embed ports, RS-232/Ethernet)

• Certifications and documents (CE/FCC/RoHS, spec sheets, CAD drawings)

Suitable for brand owners, system integrators, and overseas traders.

Frequently Asked Questions

Q: What is the GF-HDMI0404ES? A: It is a 4×4 fixed HDMI seamless matrix switcher from Guangzhou Gefen Electronic Technology that supports 4K@30Hz, seamless switching, quad-view split, and 4-screen video-wall splicing.

Q: Does the GF-HDMI0404ES support 4K@60Hz? A: No. It supports up to 4K@30Hz (HDMI 1.4). For 4K@60Hz, use the Gefen GF-UHD0404A (HDMI 2.0) model.

Q: What is the difference between seamless and standard switching? A: Seamless switching keeps the output active with no black screen during a source change; standard switching briefly drops the signal (black/blue screen) while re-synchronizing.

Q: Can it do video wall and quad split? A: Yes. It supports quad-view (PIP) split on one output and 4-screen video-wall splicing across outputs.

Q: Does it extract audio from HDMI? A: Yes. It has 3 independent de-embedded audio outputs and 1 switchable embed/de-embed port.

Q: How is it controlled? A: By front-panel buttons, IR (with extender port), RS-232, and Ethernet; WEB/APP control is optional.

Q: What happens after a power loss? A: It restores the last routing state via power-off memory.

Q: Is it rack-mountable? A: Yes, it is a 1U, 19-inch standard rack-mount device.

Summary

The GF-HDMI0404ES is a 4×4 HDMI seamless matrix switcher that combines seamless switching, quad-view splitting, and video-wall splicing in a single 1U rack device, with independent audio de-embedding and RS-232/Ethernet control. It is built for control rooms, exhibition halls, conference rooms, and surveillance centers where uninterrupted, black-screen-free switching matters.
