2 x DVI seamless audio split output boards
XOUT-DVI/S2

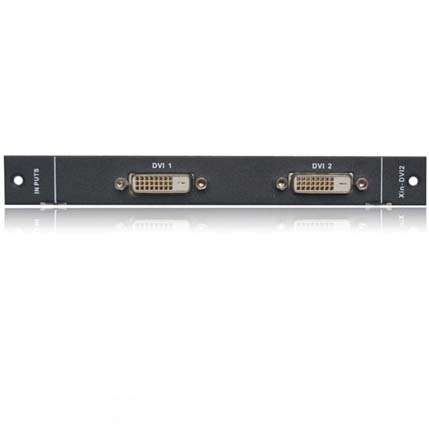

The Xout-DVI2/SA output board is designed for high-definition mixing matrices, it supports 2 DVI outputs, 2 stereo audio separate outputs, and supports digital HD signals. The modular design can increase or decrease the board as needed, which brings great convenience to the application and maintenance, and is the first choice for engineering applications.

Detail
Specification

● Support 2-channel DVI signal output, 2-channel stereo separation output adopts 3.85mm phoenix head interface, convenient for engineering applications.
● High-bandwidth Digital Content Protection (HDCP) technology is supported.
● Support intelligent EDID calculation function: it can automatically calculate the intersection and collection of EDID information of any output display in real time.
● Support EDID switching function: you can read back the EDID information of any output display device and switch it to any other output display device.
● Card-like structure, plug and play, no setup required.

Product model	GF- Xout-DVI2/A
parameter		2 x DVI + Audio output boards
agreement		Support DVI1.0 protocol (partial), HDCP protocol, HDMI1.4 compatible protocol (partial)
Pixel bandwidth		225MHz, all digital
Interface bandwidth		3.9Gbps,all digital
The maximum resolution is supported		Normal-PC： 1600x1200@60_24bit, HDPC: 1920x1200P@ 60_24bit, HDTV：1920x1080P@60_36bit
The bit clock is jittering(Clock Jitter)		<0.15 Tbit
bit rise time(Risetime )		<0.3Tbit (20%--80%)
bit drop time(Falltime)		<0.3Tbit (20%--80%)
Signal type		DVI-D all-digital T.M.D.S signal in the DVI 1.0 specification
interface		DVI-D female interface
Signal strength		T.M.D.S +/- 0.4Vpp
Min/Max level		T.M.D.S 2.9V/3.3V
Enter the EDID		EDID is rewritable on the spot
Maximum DC bias error		15mV
