GEFFEN HDMI 4K 9-screen splitter
HDH-9:1 4KP

GEFFEN HDMI 4K 9-screen splitter is a high-performance switcher with 9-channel HD screen splitting and seamless switching output, the switcher can display 9-channel HD digital video signals on the same screen, and has a variety of video splitting effects, while 9-channel HD input signals can be seamlessly switched. The switcher can be controlled in a variety of ways, from the front panel button to the local IR. With stable products and simple installation, it is a highly practical splitting switcher, which can be used in major engineering projects, conference halls and other places.

● Support 9 HDMI inputs, 1 HDMI output

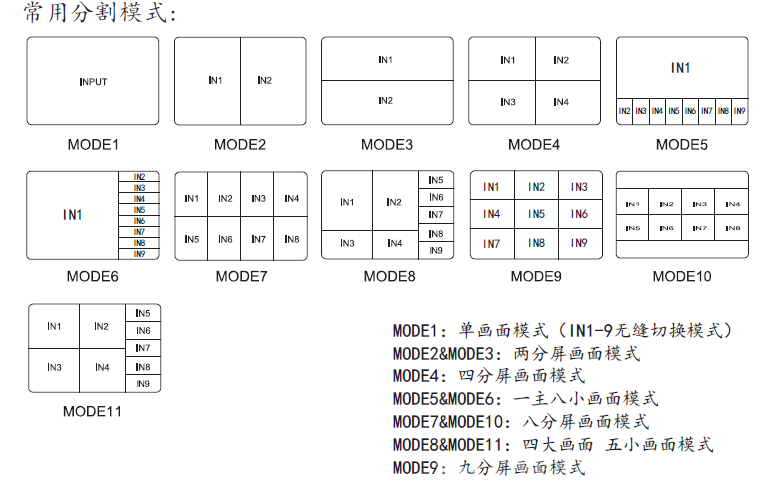

● Support 9-channel HDMI signal screen splitting
● Support seamless switching between 9 HDMI signals
● Support IR switching
● Compatible with HDMI1.4, HDCP1.4, compatible with DVI1.0 version
● Support audio and video overlay, that is, different videos and audio are combined
● The image is displayed clearly

HDMI input ................................. 1080P, 720P, 1080i, 1024x768, 1360x768, etc
HDMI output ............. 1080P@60HZ,2560x1600@60HZ,2560x1440@60HZ,3840x2160@30HZ.
Input HDMI cable length ................................ ≤ 15m AWG26 standard HDMI cable
Output HDMI cable length ................................ ≤ 15m AWG26 standard HDMI cable
Power Adapter Specifications ................. AC input (50HZ, 60HZ) 100V-240V; DC output 12V/2A
Operating temperature range .................................................... (-15 to +55℃)
Operating humidity range .............................................. 5% to 90%RH (non-condensing)

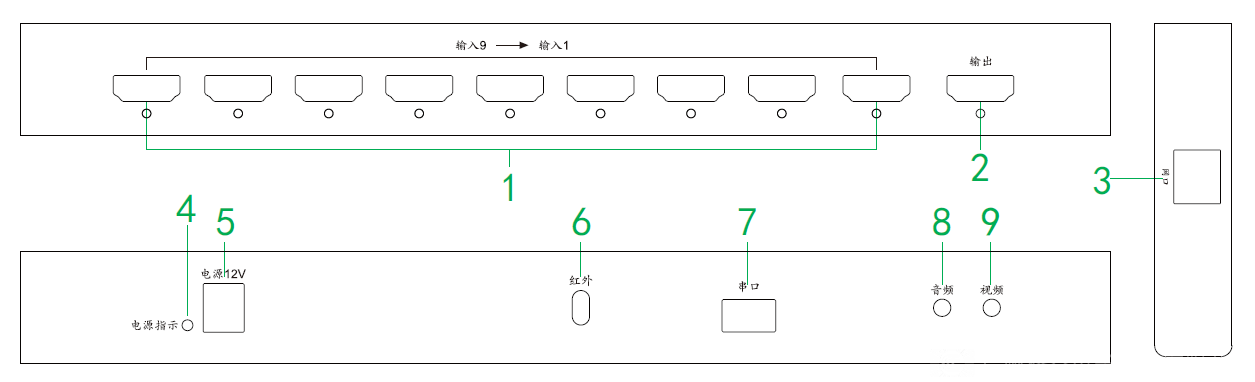

1: Input 9 → Input 1 --- input interface
2: Output --- output interface
3: Network port --- network cable interface
4: Power Indication --- Power LED Indicator
5: Power supply 12V --- DC/12V power interface
6: Infrared --- Infrared reception
7: Serial port --- RS232 serial port
8: Audio --- Audio toggle button
9: Video --- video mode switch button
