HDMI with Mix Audio Splitter 4K 60HZ with RCA
GF-HDMIA4

HDMI with Mixer Audio Splitter 4K 60HZ with RCA capable of stripping audio from HDMI sources to optical and analog stereo L/R audio outputs. For maximum flexibility, the audio extractor also supports Bitstream audio downmixing to analog stereo outputs and maintains audio pass-through for optical and HDMI outputs. The video resolution supports up to 4K2K@50/60Hz (YUV 4:4:4). It supports 10bits HDR (High Dynamic Range) path and HDMI high-resolution pass-through digital audio formats such as LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, DolbyAtmos and DTS-HD Master audio, with an audio sampling rate of 192KHz.

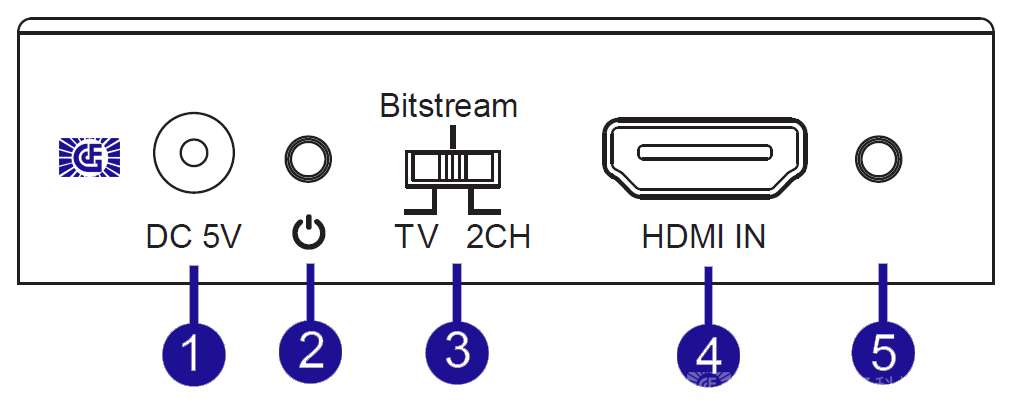

HDCP 2.2 and CEC pass-through functions are supported. The front panel DIP switch allows you to select TV, Bitstream, Bitstream, or 2CH audio formats.

☆ Comply with HDMI 2.0b, HDCP 2.2 and DVI 1.0 specifications
☆ Support video resolution up to 4K2K@50/60Hz (YUV 4:4:4)
☆ Support stripping the audio of HDMI source devices to multi-channel optical (SPDIF) and L/R analog audio output
☆ Support HDMI pass-through audio input to HDMI and optical audio output
☆ Support Bitstream audio downmixing to L/R analog stereo output
☆ Supported optical audio formats are LPCM 2CM, Dolby Digital 2/5.1CH, DTS2/5.1CH
☆ Support HDMI High Bit Rate (HBR) audio pass-through
☆ Support audio sampling rate up to 192KHz
☆ Support 10bits HDR path
☆ Support CEC transparent transmission
