Hybrid control multi-function KVM platform-Geffen Maxtrix Control System Manufactory CN

Hybrid control multi-function KVM platform
GF-KVV16D

GF-KVBP16 integrates LED display, ultra-thin keyboard, mouse touchpad, integrated in a 1U height unit, and adopts a drawer-type installation method, which completely solves the lack of space compared with standard keyboards, monitors, and mice, which can save 85% of space. Featuring a high-quality Class A 17" LED (no bright spot) display with a built-in switcher that can directly manage 16 servers and up to 512 servers.

Detail

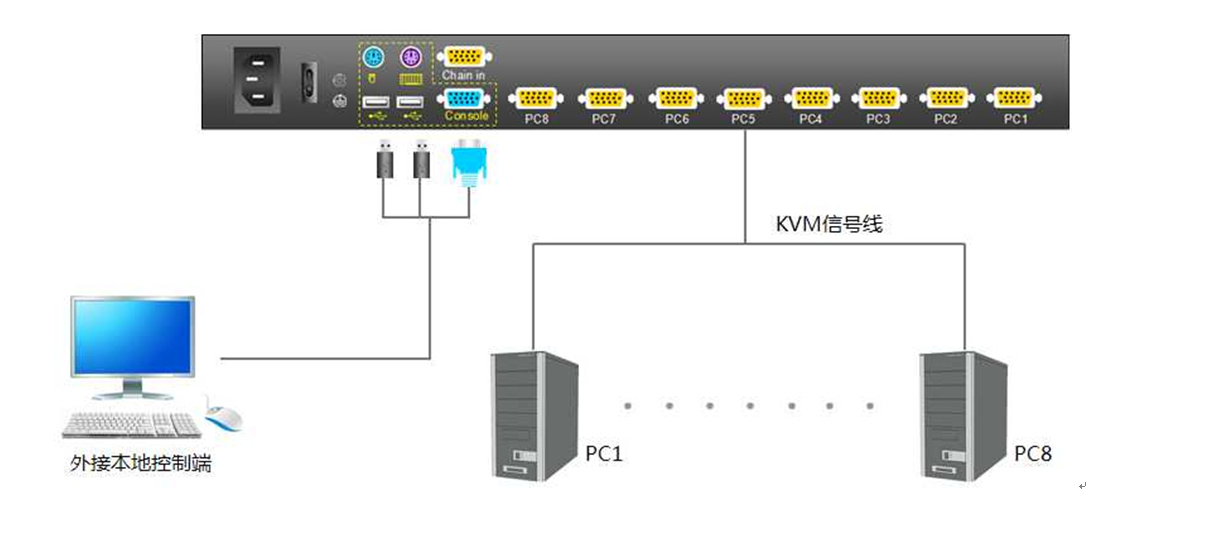

Topography

Hardware features:

The 17-inch LED display and KVM control are integrated into a single slide rail body, taking up only 1U rack space

The LED display can be unfolded up to 135 degrees to provide a comfortable viewing angle

Drawer type, USB HUB function can be realized through the front USB2.0 interface

Multiple management methods

Easily switch between servers with hotkeys, panel buttons, and OSD menus

Provides an automatic scanning mode to continuously monitor the host selected by the user

Hot-swappable – add or remove servers at any time without shutting down the power

Name the server and enter the SN number vaguely to quickly locate and select the server security features you need

Control functions

A single group of controllers can manage 16 servers and multiple devices can be tiered and up to 512 computers can be managed

Security features

Supports multi-user account management and management layers, password protection, and search for PC server names

HD resolution

17 inch LED LCD display, high brightness, high definition, resolution up to 1280x1024@75Hz

Supports a wide range of operating systems

Dos/Windows series, Linux, UnixMac OS 8.6/9/10, SUN Solaris 8/9
