★ The use of efficient and stable Class-H line, through efficient signal conversion function, greatly reduces harmonic distortion, intermodulation distortion and transient intermodulation distortion, so that the sound quality is perfectly amplified.

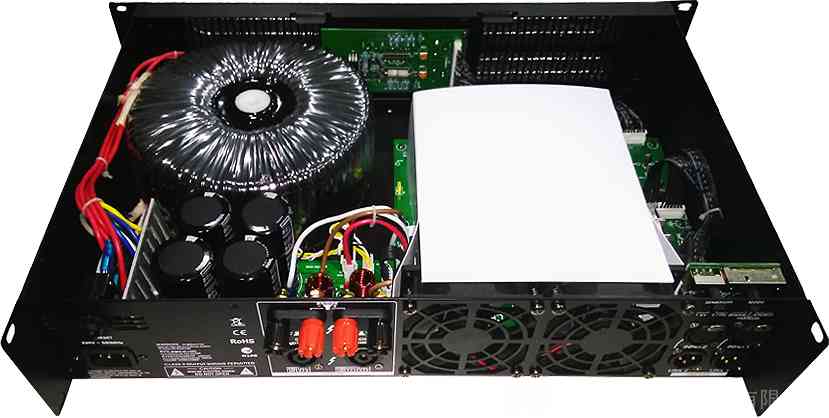

★ The integrated modular design, solid and compact structure and exquisite manufacturing technology make it stable and excellent in small conference rooms, KTVs, large stadiums and concerts.
★ It is mainly used for KTV, conferences, small roadshows, multi-function halls, etc
★ Small size, low weight, high efficiency, high sound quality, full and magnetic sound
★ It has a unique protection circuit design, protection functions: DC, overheat, overload and limiting, overvoltage and undervoltage effectively ensure the long-term use of the equipment
★ The rear panel pull switch is used to select stereo mode, bridge mode, parallel mode, three working modes
★ CIRCUIT TYPE: CLASS H
Stereo output power 8Ω: 600W×2
Stereo output power 4Ω: 1000W×2
Bridge power 8Ω: 1800W
Input sensitivity: 0.775V/1.4V
Frequency response: 20-20000Hz (±0.3dB)
Slew rate: ≥10V/μs
Damping factor: >200:1
Crosstalk: >-75dB@1KHz
Signal-to-noise ratio: >100dB
Total harmonic distortion: <0.5%, 1KHz
Intermodulation Distortion: <0.35% 8Ω, 1KHz1W
Net weight: 14.3kg
Gross weight: 16kg
Dimensions (W×H×D) 483×88×360mm
OUTER PACKING SIZE: 550X505X140MM
