The 8-key programmable center console is a system that allows you to program and control peripherals. Each key can be programmed, and the keys can be used independently of each other. The programmable control panel consists of a programmable control system consisting of three RS232, one RS485 port, two infrared emission ports, two relay control ports and a micro USB port, wherein RS232(1) and IR2 share a port and cannot use both ports at the same time;
This product can basically control all equipment products. This applies to equipment such as cameras, projectors, projection screens, televisions, etc. It is a simple and practical control unit that can be used in exhibition halls, multimedia classrooms, etc.
⚫ Each button can be programmed to control peripherals (cameras, projectors, etc.) via serial RS232 and RS485.
⚫ Support serial port receiving function, used for linkage control. It can also be used for secondary development.
⚫ Each button can be set to send an infrared code, control the relay, and control the peripherals via the corresponding port.
⚫ Connect to a computer via RS232 or USB to learn Xi IR.
⚫ With ID cascade function, up to 99 units can be cascaded, of which up to 10 interactive machines can be used, and each machine can be identified by ID (01~99).
⚫ It has USB and RS232 selection control and PR8 Builder software settings.

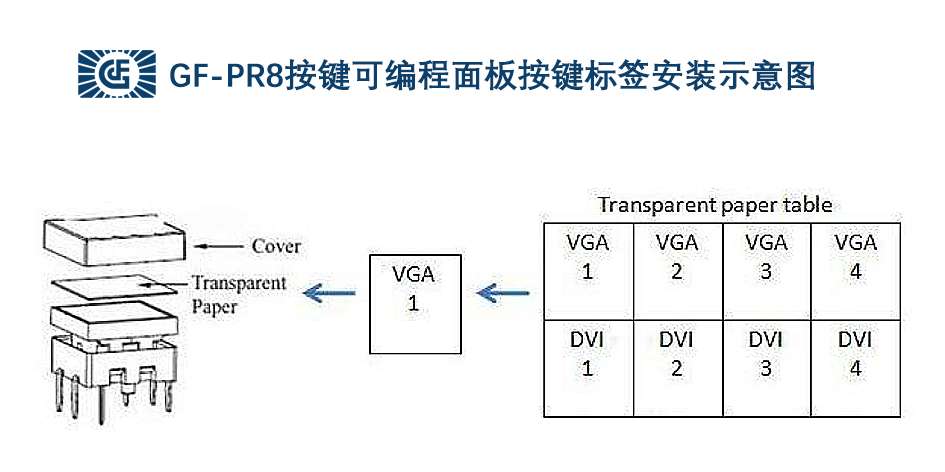

⚫ It has the ability to customize the key labels.
The front panel of the product is equipped with 8 illuminated transparent buttons, and each button can be programmed and controlled by software;
