DVI to VGA converter
GF-DV240

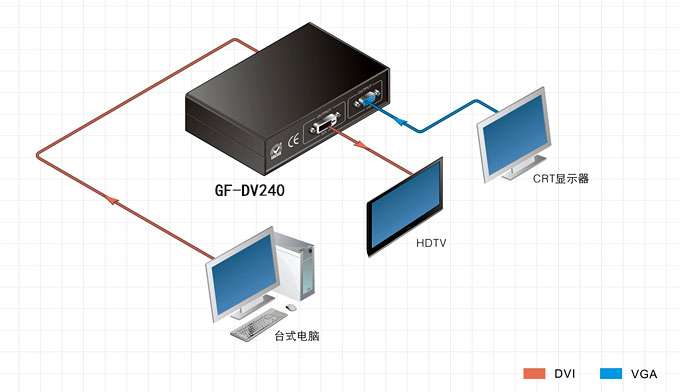

In the engineering application system, it is a very good way to improve the quality of the system, and the whole system is digitalized. But in this case, the cost of the entire system will be relatively high. With the development and popularization of digital technology, most of the high-end signal processing and display equipment have visual digital signal interface (DVI port), which provides the possibility for the implementation of digital engineering. However, due to the limitations of many factors, even if a digital system is adopted, there are many occasions when it is necessary to send the analog signal used in an analog computer display into the digital system.

Technical Parameters:

1. Support signal standard up to 1920×1080×60Hz.
2. Support 1 channel analog RGBHV or RGsB input.
3. 1 channel DVI signal output.
4. Support sampling clock frequency adjustment.
5. Support sampling clock phase adjustment.
6. Support image horizontal position adjustment.
7. Support image vertical position adjustment.
8. Able to independently adjust and save various adjustable parameters under various input resolutions.
9. Input support Windows plug and play.
10. Signal input indication.

Electrical connectors
Maximum input refresh rate: 85Hz
Input maximum resolution: 1920×1080
RGB signal input amplitude: 0.5Vp-p-1.5Vp-p, impedance: 75Ω±4Ω
H, V signal input level: TTL level, impedance: 510Ω±25Ω
Gs signal synchronization head amplitude: synchronization head 30%, signal 70%, impedance: 75Ω±4Ω
RGB Channel Isolation: Better than -50dB (10M Hz)
Pixel clock frequency: 24M Hz-165M Hz
Signal-to-noise ratio: greater than 48dB
RGB signal output amplitude: the amplitude is the same as the input, impedance: 75Ω±4Ω
H, V signal output level: TTL level, impedance: 75Ω±4Ω

Specification features:
Input interface: 15HDF type
DVI output interface : DVI-D type
Power supply: AC100-240V, 50/60HZ
Weight: 350g
