HDBaseT 150m Long Range Uncompressed KVM Extender-Geffen Maxtrix Control System Manufactory CN

HDBaseT 150m Long Range Uncompressed KVM Extender
GF-TPHD141V

GF-TPHD141V uses HDBaseT technology, adopts non-delay, uncompressed transmission technology, supports 1920*1200@60Hz HDMI signal transmission 150 meters through Cat5e/6 network cable, and can also transparently transmit USB1.1 and infrared signals, which is widely used in home theaters, exhibitions and command center scenes.

Detail

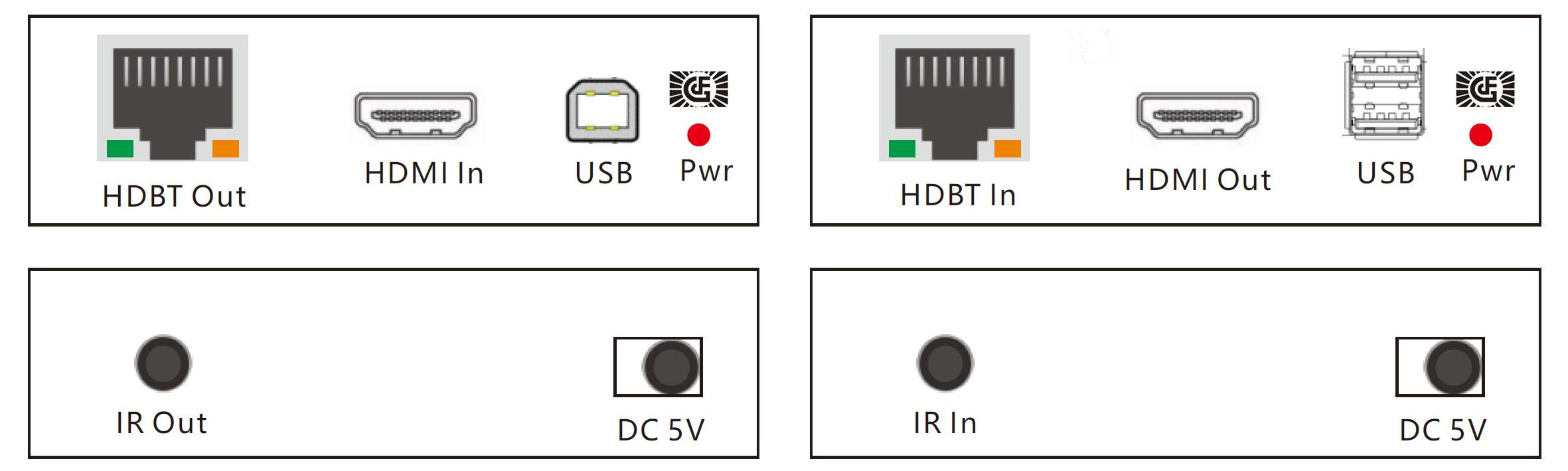

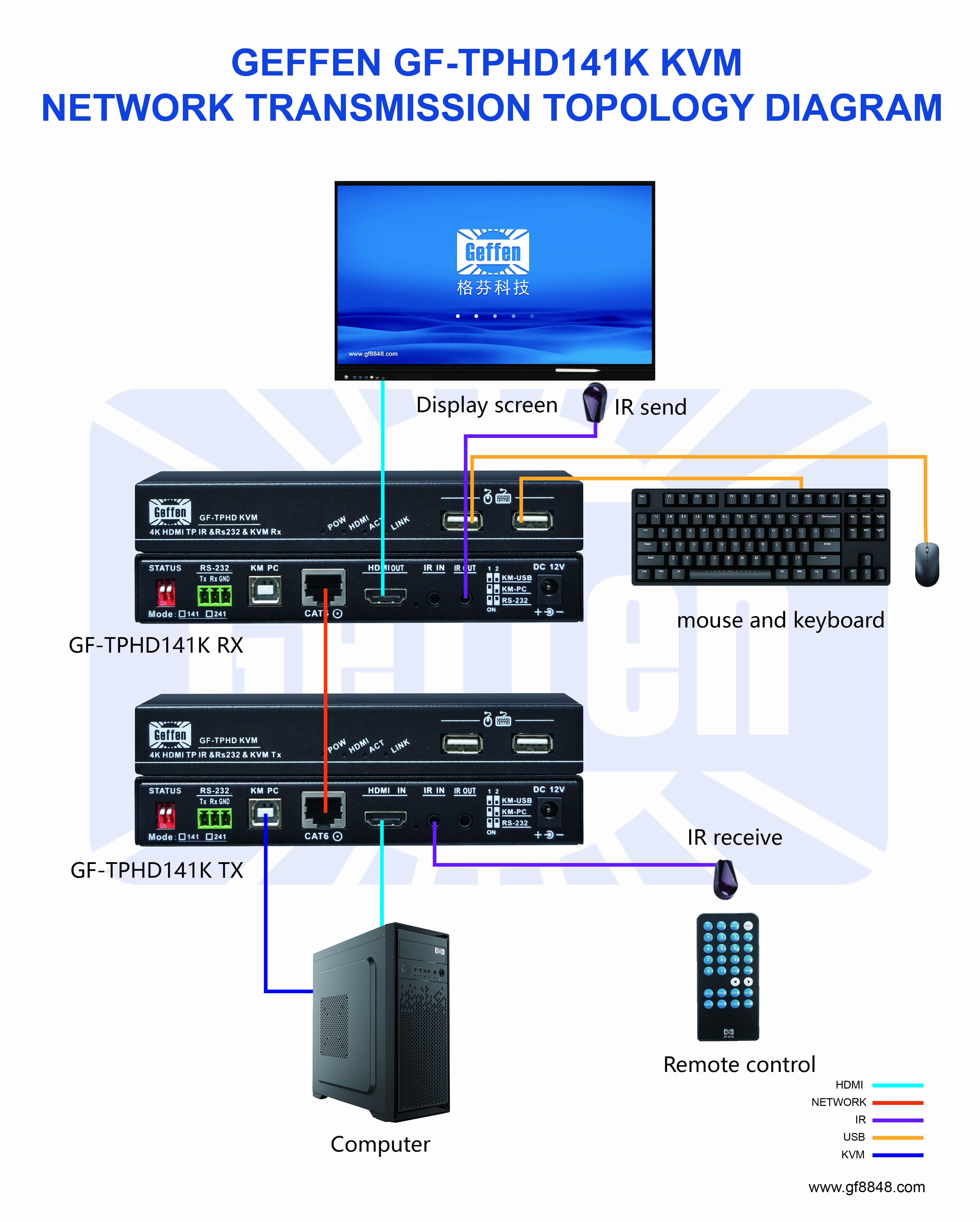

Topography

● Support HDMI1.3
● The supported resolution can be up to 1920*1200@60Hz, 1080P@60Hz.
● Support one Cat5e/Category 6 network cable to transmit 5.3Gbps HDMI signal, infrared signal and USB1.1 signal.
● Support up to 7.1 channels and LPCM, Dolby TrueHD, DTS-HD Master Audio.
● Support EDID and be compatible with various HDMI sources and display devices.
● Support USB1.1 transmission, can transfer mouse, keyboard.
● Easy to install, plug and play.
● No compression, no delay transmission of images, zero loss of image quality.
● Support 5V/2A power supply at both ends.
