HDMI audio de-embedding, decoding, and converting
GF-HAS02

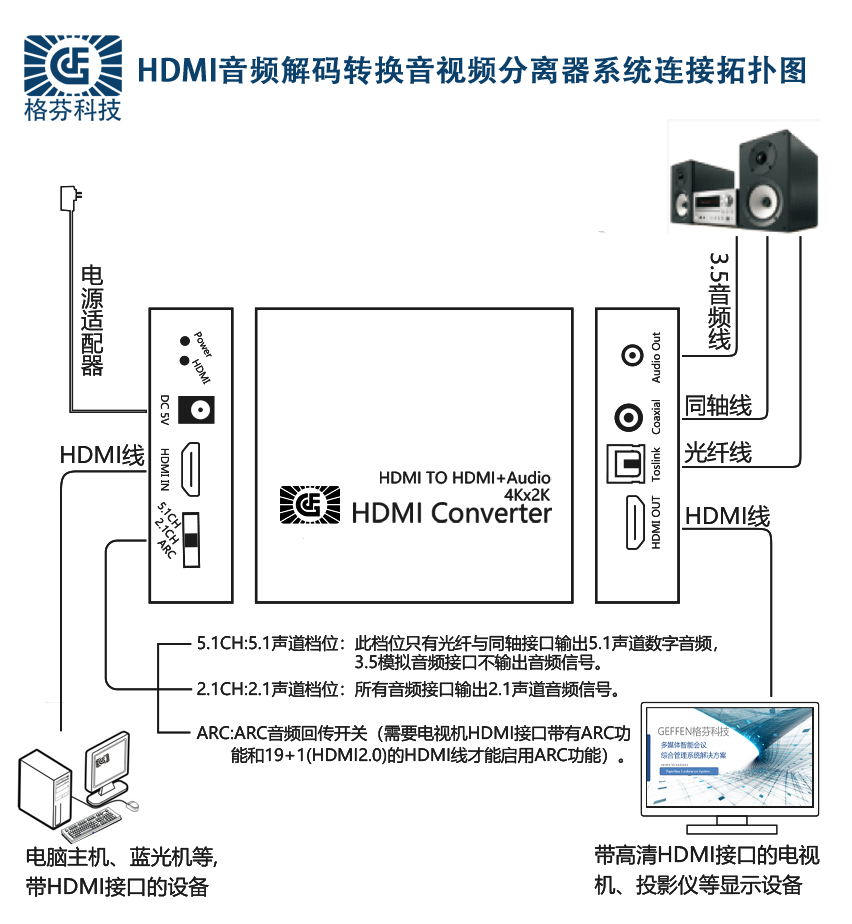

The HDMI audio decoder converter has an HDMI signal input that converts into an HDMI signal and a 2.1 and 5.1 channel audio output. It also supports EDID storage and HDCP compatibility, supporting the highest resolution 4Kx2K@30Hz input and output. It supports 3D video formats and supports ARC audio back function. Use the HDMI port of your TV with ARC function to send the high-quality audio from your TV back to the home theater amplifier through the HDMI audio decoder to get the best sound.

● Support HDMI1.4
● Support HDCP1.4
● Support video bandwidth 340MHz/per channel
●Support color depth 24-bit
● Support the highest resolution 4Kx2K@30Hz
● Support HDMI_ARC digital audio backhaul
● Support 3D video formats
● Support CEC function
●Support SPDIF optical audio output DTS-HD &Dolby True HD
●Support coaxial audio output DTS-HD &Dolby True HD
● Support analog stereo audio output
●Support power adapter specification AC (50/60Hz) 100V~240V input, DC5V/1A output
●SUPPORT THE MAXIMUM WORKING CURRENT OF 300MA
●Support working temperature 0~40°C
●Support operating humidity 5~85%RH (non-condensing)

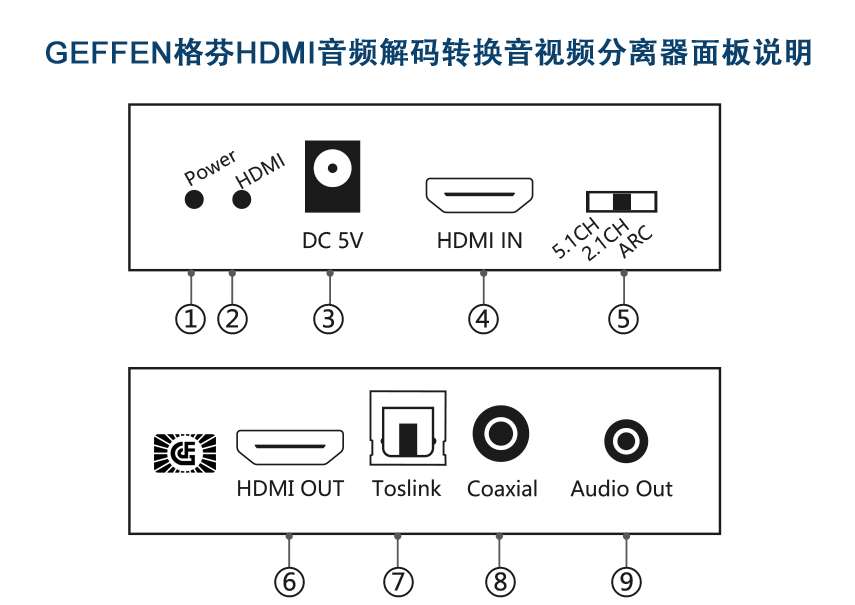

① 电源指示灯
② 信号指示灯

③ 电源输出接口
④ HDMI输入接口
⑤ 音频输出选择开关
⑥ HDMI输出接口
⑦ 光纤音频输出接口
⑧ 同轴音频输出接口
⑨ 3.5mm模拟音频输出接口
