Intelligent centralized control of digital edge co

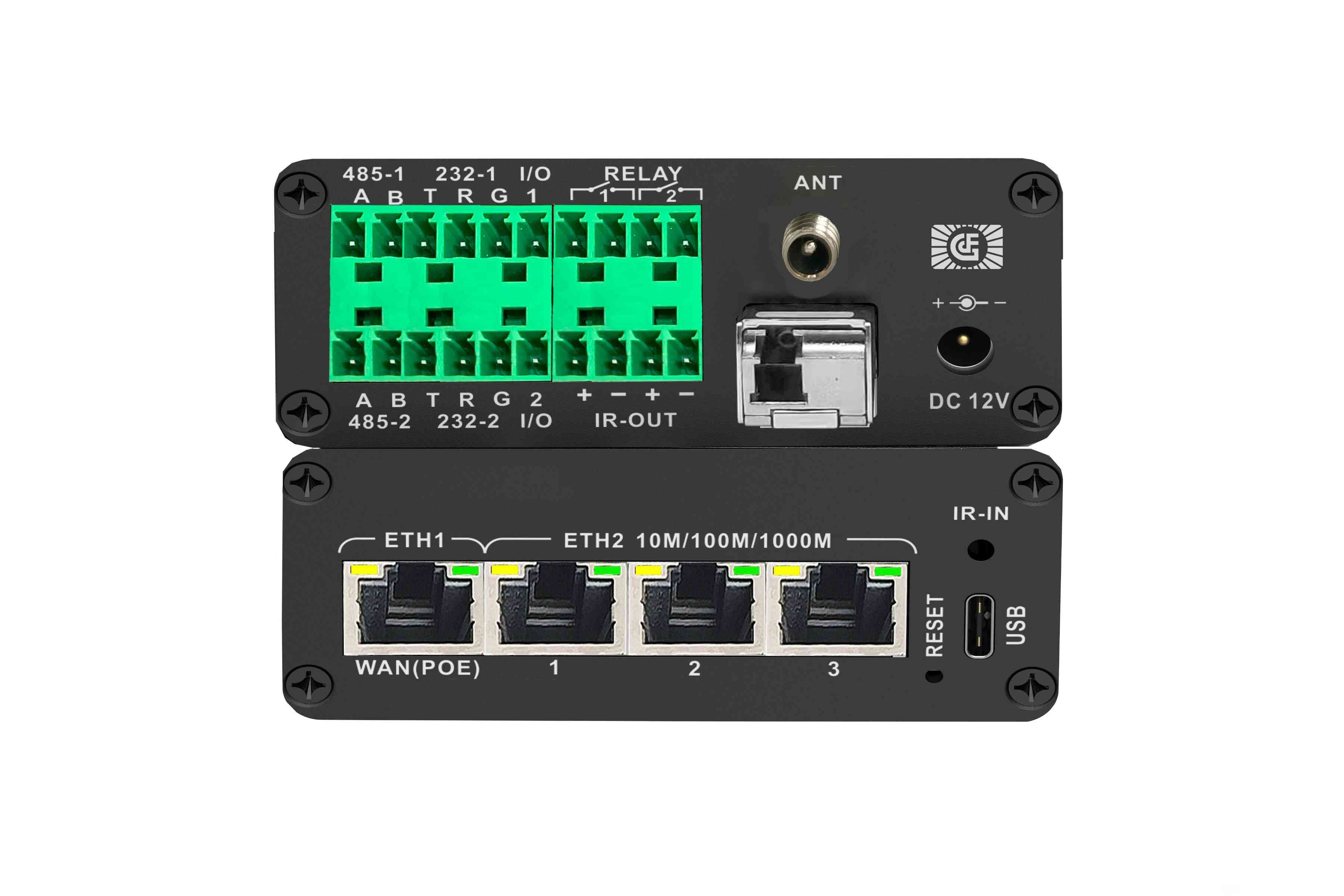

It supports rail installation, desktop placement, self-developed industrial-grade embedded Linux operating system, perfect C language PGMControl integrated development environment and perfect interface PanelControlPro integrated development environment, supports real-time programming and program development on the ground and human-computer interaction, and supports the current mainstream Internet of Things protocol and big data JSON protocol development. From the integrated development environment of chips, systems and IDEs, it is 100% produced in China, and it is equipped with dual network cards to realize network security information protection and Ethernet data expansion and interaction to meet the needs of different information scenarios.

Detail

● It adopts a new domestic hardware design and an independent integrated development environment IDE.

● It adopts the domestic ARM 64-bit core processor, and the core processor can be selected according to the application scenario.

● Industrial-grade DDR4 memory and memory.

● Support standard POE power supply and data transmission interaction.

● It has the function of converting Fiber to UTP, which is not afraid of long-distance transmission networking.

● It has a system reset button, which supports one-click recovery of dual network card IP information.

● The system has dual network cards and supports dual network data isolation or data filtering.

● The device supports only one IP address for application data interaction.

● It supports rail mounting and desktop mounting.

● Standard networking IEEE 802.3 standard.

● The device comes with independently programmable 2-channel serial port, 2-channel IR and 2-channel standard RS485.

● The equipment has the function of infrared Xi, supports the infrared signal of 20-80K Xi, and supports the function of infrared database.

● The device supports the whole Netcom ad hoc network access platform and remote control, and supports the confidential construction of dual network cards.

● It supports any cascade with programmable central control and cascade with the external network.

● IoT platform management, remote remote operations, and status feedback are supported.

● Support multi-terminal touch tablet synchronization status and tablet control operation.

● The integrated development environment can be used to develop and write any protocol C language algorithms.

● The integrated development environment can be used to realize the UI design of human-computer interaction control.

● Supports custom data soft routing and encrypted data transmission.

● FTP and data log functions are supported.

● Support weather forecasting and big data platform notifications.

● Support WS, WSS, http, socket, unicast, multicast, CAP, SNMP, MQTT communication.

● Support database and power-down storage.

● Support project file backup, remote upload and maintenance.

● It has a TYPE-C interface and supports USBKVM function.

● It supports serial port to network or serial port distribution, and supports network serial port exchange protocol customization.

● It supports the conversion of BS architecture data to CS architecture data, and supports the dynamic creation of SOCKET network data communication ports.

● Support expansion of wireless RF, LoRa, Bluetooth, wireless WIFI, 4G network, etc.
