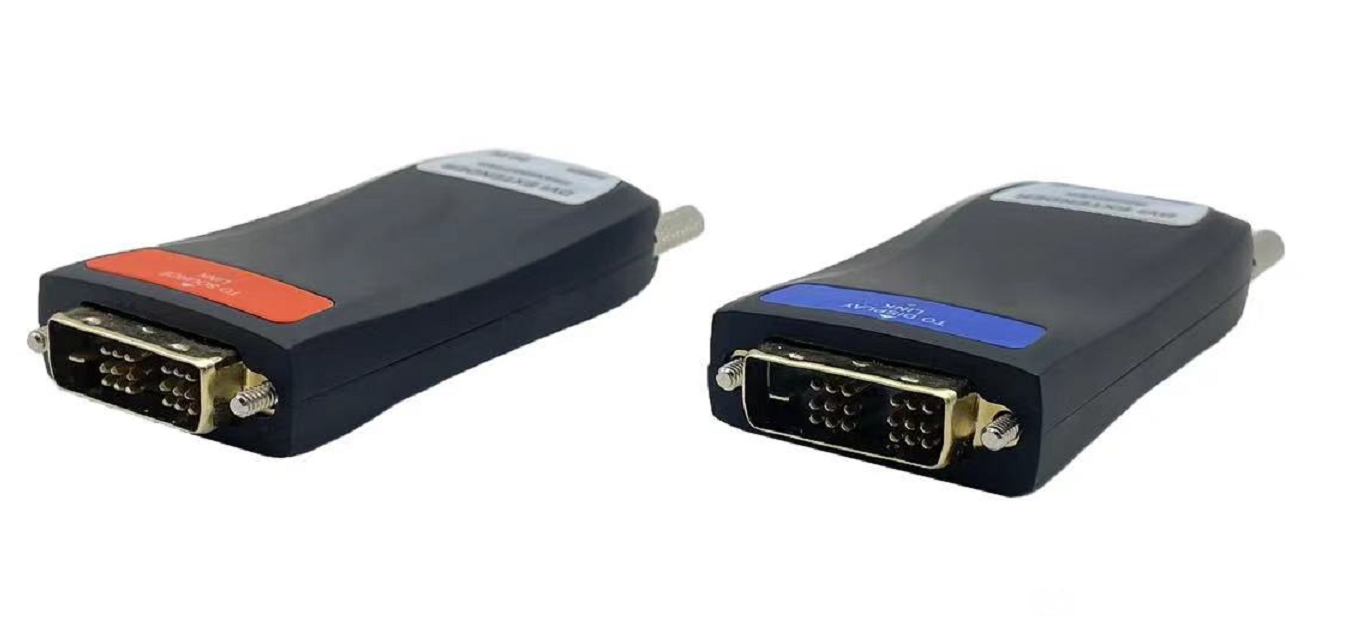

Geffen mini uncompressed HD video optical transceiver adopts 1 LC optical interface, and single-mode fiber can transmit 2km. The parallel converter is used to convert the 4 pairs of TMDS differential signals into 10.2Gb/s serial signals in series, and then the serial signals are converted into optical signals through the photoelectric conversion driver and the 1310nm wavelength laser, which are transmitted through optical fibers. The optical receiver receives and converts the high-speed 10.2Gb/s optical signal into a serial electrical signal through a photodiode, amplifies and shapes the signal through an amplifier and equalizer, and then converts it into a parallel 4xTMD signal through a series-parallel converter.

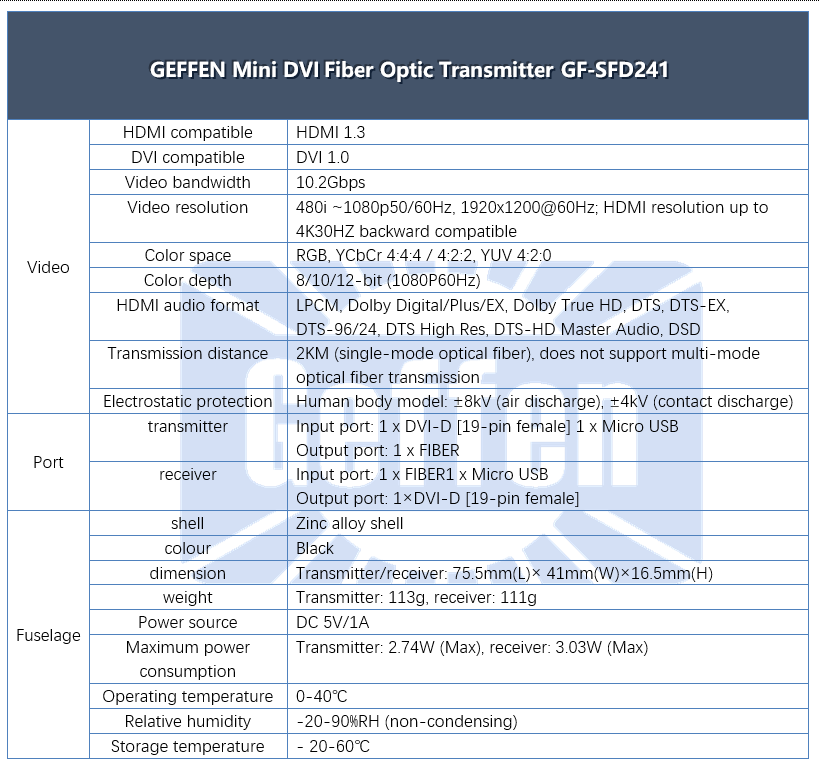

HDMI 1.3 and DVI 1.0 compliant Supports 10.2Gpbs video bandwidth Video resolutions up to 1920x1200@60Hz supported The DVI signal can be extended by up to 2 kilometers via single-mode fiber optic cables The transmitter supports EDID Xi function Videos in 3D format are supported The design is reasonable and easy to install
