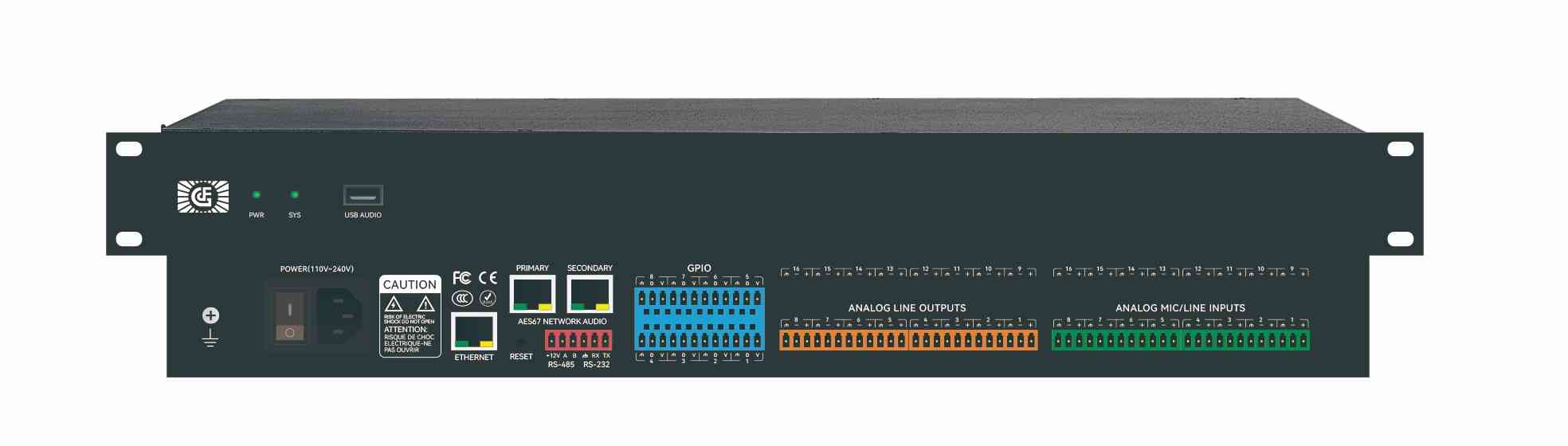

16 IN 16 OUT Digital Analog Audio DANTE Processor
GF-AUDIO1616D
●Analog input channels: 16
●Analog output channels: 16
● AES67 input channels: 16
●AES67 output channels: 16
●Processor: ADI SHARC 21489@450 MHz SIMD
●DSP processing capacity: 400 MIPS, 1.6 GFLOPS
●Sampling rate: 48 kHz, ± 100 ppm
●THD+N:<-95dB @17dBu
●Input dynamic range: 113dB
●Output dynamic range: 113dB
●The processing module is configurable and can be freely replaced according to needs
●Provide 8 sets of equipment for online operation at the same time
●Built-in one-in, one-out USB sound card, supporting music playback, recording and soft video conferencing (such as: ZOOM, Tencent Meeting, DingTalk Meeting, etc.)
●Bus AEC, tail time: 512ms, convergence rate: 60dB/s, echo cancellation amplitude: 60dB
●AFC (feedback suppression) of independent channels, using notch algorithm, sound transmission gain increase: 10dB
●Noise suppression (ANS), signal-to-noise ratio increased by 18dB
● Dodge (Ducker)
●Noise Gain Compensator (ANC)
●Gain Sharing Automix (AMC), Gate Mixer
●12-band British parametric equalization, providing 5 filter options: Parametric, Lowshelf, Highshelf, Lowpass, Highpass
●Provide end-user customized operation interface, support up to 30 devices in the same interface management
★ Support camera tracking
★ It has 8 GPIOs
★ With central control function, it supports RS232, RS485 and UDP three control modes, which can control the power supply, signal switching, environmental control, audio and other functions in the system as a whole, and realize the functions required by the system with one key.
