16 channels, 16 input and 16 output HDMI video ma
GF-HDMI1616

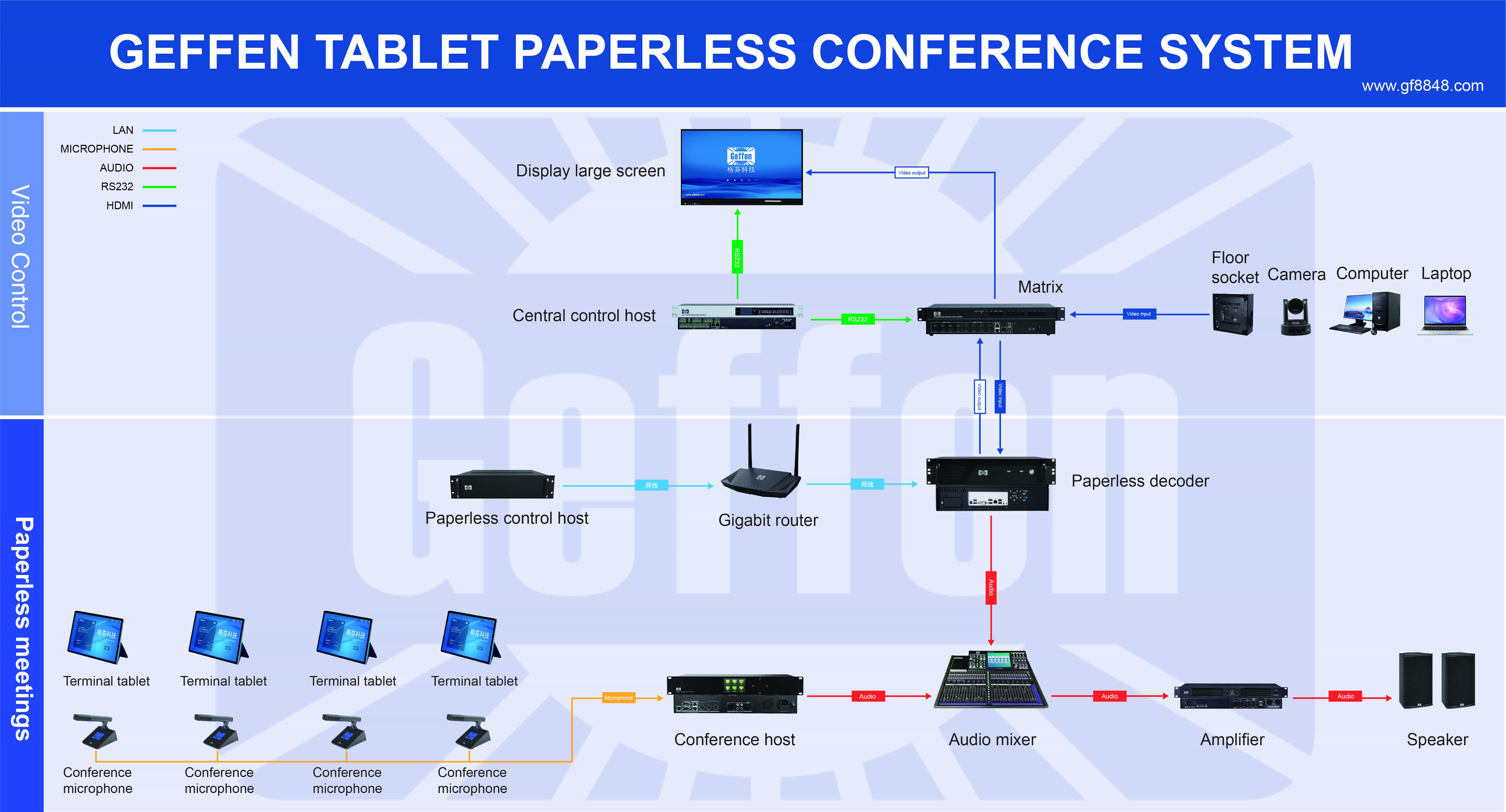

PredatorThe Predator Series GF-HDMI1616 is a high-performance digital matrix switcher for routing HDMI signals from multiple sources to any or all 16 HDMI-capable displays. This matrix supports HDMI 1.4, HDCP 1.3, and DVI 1.0 protocols. Supports all HDTV resolutions with 12-bit color depth, supports resolutions up to 4K, and is HDCP compliant, allowing a source to be assigned to one or more compatible display devices at the same time. Safe and reliable control mode, it is your good partner in conference rooms, exhibition halls, classrooms, multimedia classrooms and other engineering projects.
  • Support 16-channel HDMI video input, 16-channel HDMI output and cross-switching of embedded multi-channel digital audio and video signals.
    Compatible with all HDTV resolutions including 1080p/60 and resolutions up to 4K.
    Automatic equalization of long-line inputs – ensures that each input can be independently and automatically compensated for signal loss caused by long-distance transmission or the use of low-quality line villages.
    Supports HDMI 1.4, HDCP 1.3, and DVI 1.0. Supports high color depth and up to 2.25Gbps speed.
    HDCP Compatible – ensures that content-protected media can be displayed properly and used in conjunction with other HDCP-compatible devices.
    With crystal key panel operation.
    Network control (optional).
    It has the function of power-off memory and the on-site protection function of power-off.
    It has 2 RS-232 communication interfaces.

category

Predator Series GF-HDMI1616

Video

agreement

Support HDCP1.4 protocol, HDMI1.3 protocol, compatible with DVI1.0 protocol

gain

0 dB

Pixel bandwidth

165MHz, full digital

Interface bandwidth

2.25Gbps (6.75Gbps total, 2.25Gbps per color)

Maximum supported resolution

HDPC: 1920x1200P@ 60_24bit,
HDTV:1920x1080P@60_36bit,

4K@30HZ

The bit clock is jittering(Clock Jitter)

<0.15 Tbit

bit rise time(Risetime )

<0.3Tbit (20%--80%)

bit drop time(Falltime)

<0.3Tbit (20%--80%)

Maximum transmission delay

5nS(±1nS)

Switching speed

200 ns (maximum)

Signal type

HDMI-A all-digital T.M.D.S. signal in the HDMI 1.3 specification

Video input

interface

HDMI-A female interface

Signal strength

T.M.D.S +/- 0.4Vpp

Min/Max level

T.M.D.S 2.9V/3.3V

Enter the EDID

EDID is rewritable on the spot

impedance

50 Ω

Maximum DC bias error

15mV

The maximum input distance is recommended

Less than 15 meters at 1920x1200@60 (certified HDMI cables, such as MolexTM cables are recommended)

Video output

interface

HDMI-A female interface

Min/Max level

T.M.D.S. 2.9V/3.3V

impedance

50 Ω

The maximum output distance is

 recommended

Less than 15 meters at 1920x1200@60 (certified HDMI cables, such as MolexTM cables are recommended)

RS-232 control interface

Serial control interface

RS-232, RJ45 type interface

Baud rate with protocol

Baud rate: 9600, data bits: 8 bits, stop bits: 1, no parity bits

Serial control port structure

2 = TX, 3 = RX, 5 = GND

specification

power supply

100VAC ~ 240VAC, 50/60 Hz, international adaptive power supply

Maximum power consumption

25w

Dimensions (mm)

483L x 290W x 88.1H

temperature

Storage and use temperature: -20°C ~ +70°C

humidity

Storage & Humidity: 10% ~ 90%

Product weight

Approximately 3.5 kg
