For the current stage of audio and video equipment, HDMI has become the de facto standard digital interface. Although it has many advantages over the previous analog or digital interfaces (the new version 1.4 also adds Ethernet, 3D and other features), there are also many inconveniences when using HDMI, such as HDMI must use dedicated, expensive cables, and the transmission interval is too short (usually within 15 meters). In order to deal with these shortcomings of HDMI, HDBaseT came into being!

Technical features of HDBaseT

HDBaseT is a network-based specification that brings together audio, video, network, control signals, and power supply lines to a common network cable for transmission.

HDBaseT uses a fully open specification, unlike HDMI and DP, which choose a dedicated interface, but a standardized RJ45 network cable interface, and uses the simplest and lowest cost plan to complete the user's requirements. Therefore, the cable does not need to be special, only the current Cat5e/6 network cable can be used as a signal transmission line, which can not only transmit images and voices, but also retain the function of the network cable itself. There is no doubt that the cost of HDBaseT is much lower than that of HDMI, which requires additional connectors and cables.

HDBaseT supports up to 20Gbps transmission rate, which is twice that of HDMI. This also allows HDBaseT to fully meet all the requirements of supporting uncompressed Full HD 1080P video data transmission, and any color depth, resolution and picture refresh rate can be freely converted, which is undoubtedly more in line with the requirements of high-resolution digital content with higher traffic in the future. Even in 4k × 2k ultra-high resolutions, HDBaseT has a talent for perfunctory.

Another feature of HDBaseT is its support for the POE (Power over Ethernet) specification (IEEE 802.3af) and the POE Plus specification (IEEE802.3at).

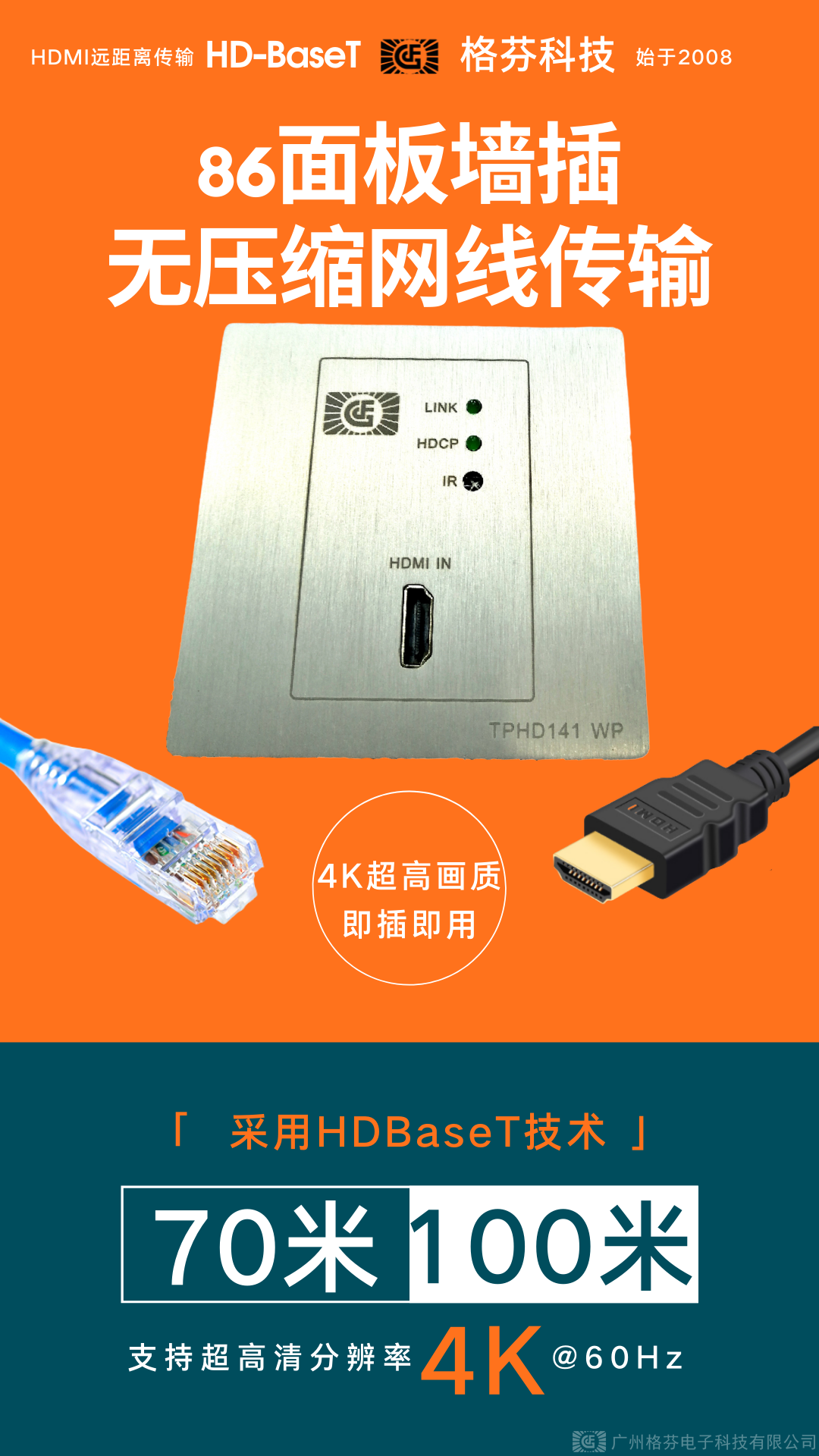

GEFFEN Geffen Technology's GF-TPHD series products use HDBaseT transmission mode to achieve high-fidelity transmission of visual and audio signals, avoid the loss of signals in the transmission process, and reduce the trouble of on-site wiring and save costs by transmitting signals through a network cable. The use of embedded installation, and the surrounding environment as a whole, so that the overall layout is relatively neat and simple, the product adopts a chassis design, the standardized design makes the product installation more simple and fast, so that the product is effectively protected.

Through Cat6 twisted pair cable, it can achieve signal transmission of up to 70~100 meters, which is far better than the current HDMI, VGA, and Display-Port standards, and is the best choice for long-distance transmission. Common ones such as projectors, TVs, mixing matrices, HD players, etc. Support POC/POE function. It is equipped with an HDMI input interface, which converts the received HDMI signal into HDBaseT format and outputs it through the RJ45 interface. At the same time, GEFFEN GF-TPHD table/wall/floor series also supports infrared input and RS232 input, which can output IR signals, RS232 signals and HDBaseT signals to the receiver at the same time.

●HDBaseT transmission technology is used to realize uncompressed and delay-free transmission of HDMI image signals.
●The use of a single network cable (CAT-5E/6) can realize long-distance transmission of HDMI signals, which greatly saves engineering wiring.
●The product is compatible with IEEE-568B standard.
●Support CEC/IR/RS232 transparent transmission.
●Comply with HDCP2.2 and HDMI2.0 standards, support EDID management.
●Support bidirectional PoE function, power supply at either end.
*Support the sender or receiver to use with HDBaset POE matrix.
●LED indicator is used to display the working status in real time.
●The maximum distance of HDMI signal transmission with a resolution of 1080P is 70 meters for a single CAT5e/CAT6a cable, and the maximum distance for HDMI signal with a transmission resolution of 4K@60Hz is 40 meters.
*The 100m version is optional, and the maximum distance of HDMI signal transmission with 1080P resolution is 100m for a single CAT5e/CAT6a cable, and the maximum distance for HDMI signal with 4K@60Hz resolution is 70m.
