8 Button Control Panel Wall Plate Module System Diagram
2024-11-03

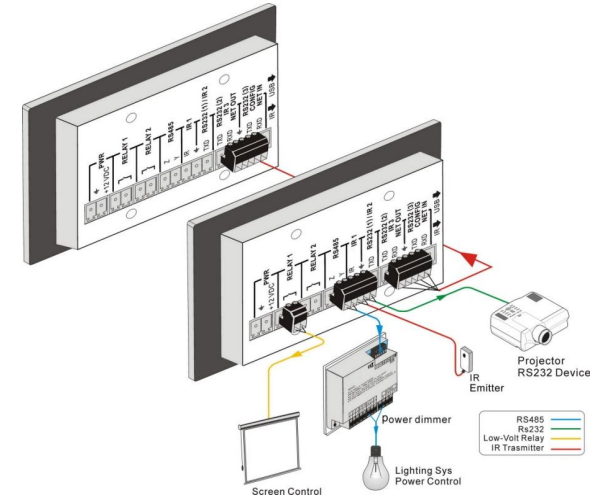

The programmable control panel can active different ports at one time. It means every button can send the RS232 and RS485 commands, IR code and control the relay at the same time. The demo system diagram as below:
