16 I/O HD 4K modular matrix switcher

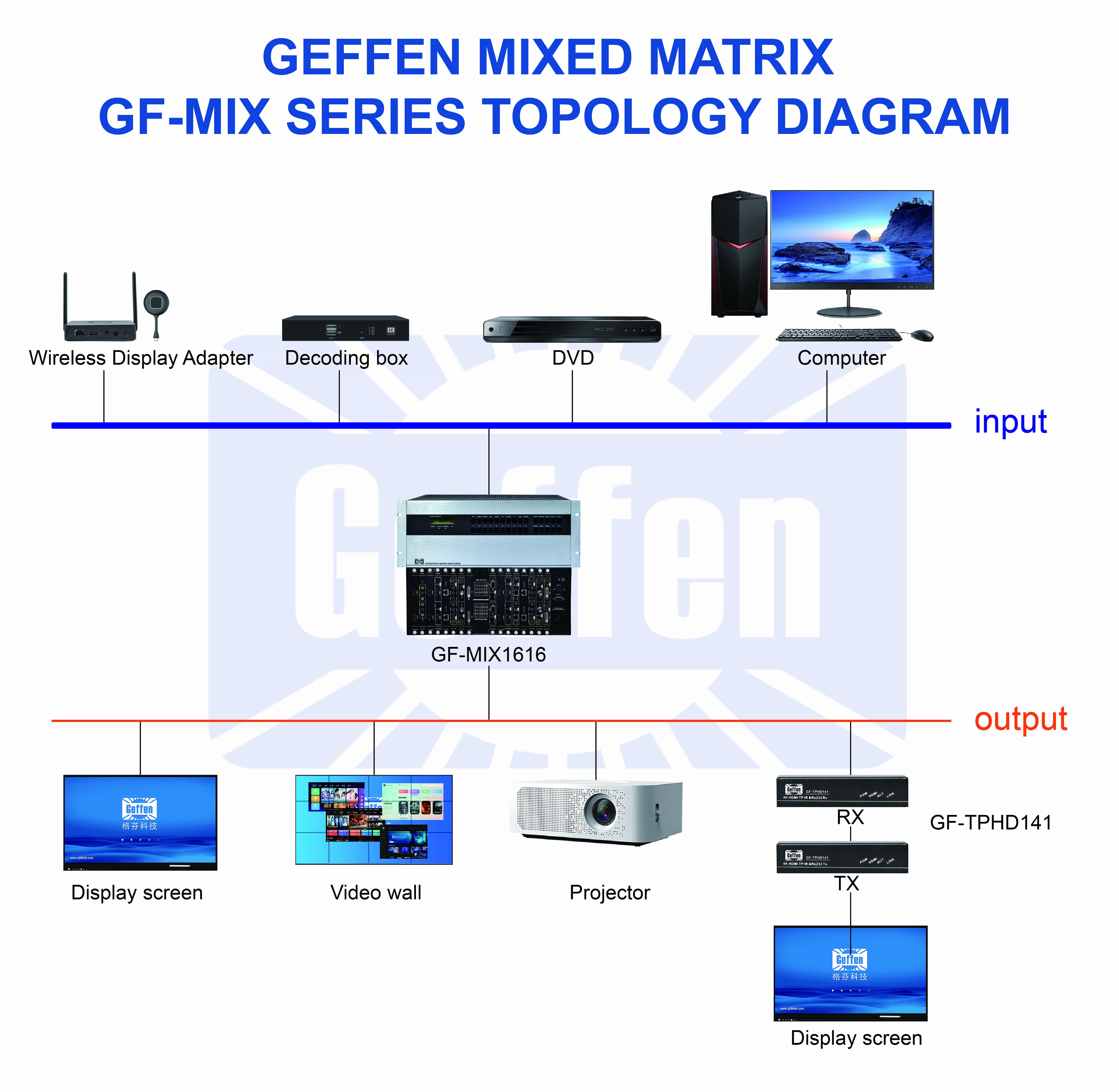

The GF-MIX modular matrix switcher series are a group of flexible configuration switchers which can cross-switch multiple types of signals. High-performance hardware design ensures its support for various high definition digital and analog signals, bi-directional RS-232 and IR control and signal management.

The GF-MIX modular matrix switcher series resolution up to 4K*2K, it can provide one-stop solution for mulitiple types of visual signals and control signals switching and processing in various industries, especially for Broadcasting and Television Projects, Multimedia Meeting Rooms, Big Display Projects, TV Education, Smart Traffic Management Centers, and Command Center, etc.

●Plug-in card structure
●Long-line drive capability
● HDCP compatible
● Audio access function
●EDID supports calculation function
● Support fast switching operation.
●EDID supports switching function
●Power-down memory function and on-site memory function
●Support cross-switching of embedded multi-channel digital audio signals
●The input and output cards are 2 channels per board, which can be configured according to requirements
● Support Full HD;
●It has 2 RS-232 communication interfaces
●Support seamless screen switching, seamless products support partition splicing
● With built-in GUI interface, multi-user management, custom device name

●Plug-in card structure: input signal Video, VGA, YPbPr, DVI, HDMI, HD-SDI, optical fiber, network, output signal support: HDMI, card structure DVI (color difference VGA), Video, optical fiber, network, card mechanism, extremely easy to expand or replace.

●Long-line drive capability: the input has automatic equalization to effectively reduce the deterministic jitter (ISI) caused by line transmission, the output has a pre-emphasis function so that the receiver can still receive the signal after long-line transmission, and the input supports reception delay to effectively compensate for the time when the differential pair line is unequal in length.

● HDCP Compatible: Make sure that the media with content protection can be displayed normally, such as Blu-ray DVD, GAME BOX, etc.

●Audio access function: VIDEO, VGA, and chromatic aberration input board have audio input interface, and with the audio separation output function of the output board, audio and video synchronization can be switched without the need for additional audio switching equipment.

●EDID support calculation function: It can automatically calculate the intersection and collection of EDID information of any output display in real time. When an input signal is sent to multiple display devices with different resolutions, it can automatically obtain the best resolution of the current switching state and trigger the signal source to change the resolution (automatic mode).

●EDID supports switching function: the EDID information of any output display device can be read back and switched to any other output display device (manual mode).

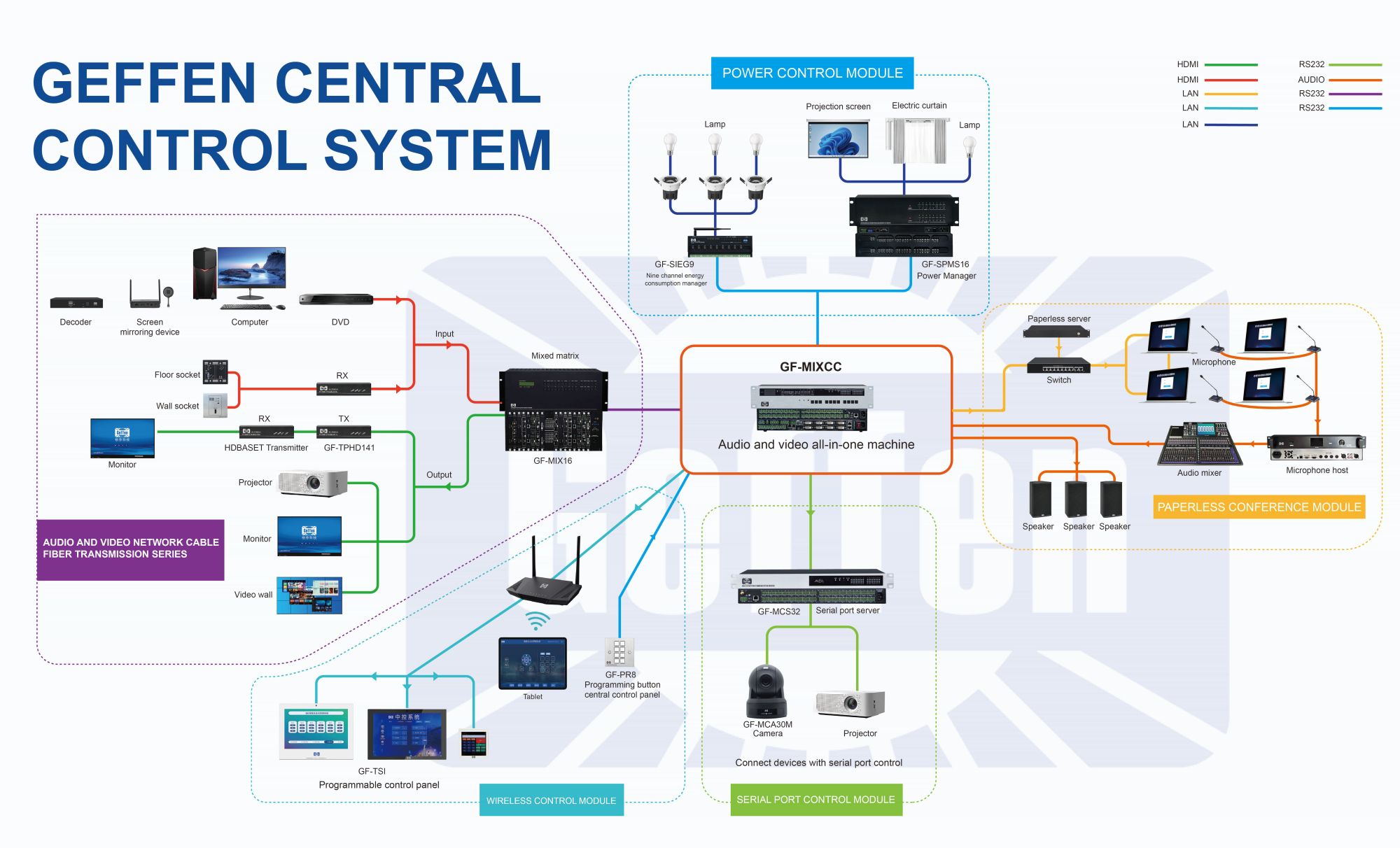

● Control interface: with 2 channels RS232 support control and cascading third-party devices. Network interface TCP/WEB cloud control or infrared remote control can be selected.

●Power-down memory function and on-site memory function: with power-off on-site protection function, and can save and recall 10 switching states.

●Input and output: up to 16 signal inputs, 16 signal outputs. Supports cross-switching of embedded multi-channel digital audio signals.

●Input and output cards: Each board has 2 channels, and can be configured with input cards of different formats (Video, VGA, YPbPr, DVI, HDMI, HD-SDI, optical fiber, network) according to requirements.

● Support Full HD: Compatible with all HDTV resolutions including 1080p/60 and up to 1920*1200 PC resolution;

● With built-in GUI interface, multi-user management, custom device name

●Supports 3D, HDMI 1.4, HDCP, and DVI 1.0 protocols. Supports high color depth and up to 3.25Gbps rate;

●All output channels can support seamless screen switching (optional), the interface signal is fully compatible, and the adaptive output parameters (resolution, up, down, left and right size) are independently adjustable, and after the function is expanded, a resolution can be selected as the resolution of the output, so as to solve the small differences such as 1360*768 and 1366*768, and the phenomenon of inaccurate border alignment in other cases.


Technical parameters

gain 0-7db

bandwidth 165MHz, All digital

The maximum supported resolution is 4K

The bit clock is jittering(Clock Jitter) <0.15 Tbit

bit rise time(Risetime ) <0.3Tbit (20%--80%)

impedance 100 Ω

The recommended maximum output distance is less than 10 meters at 1920x1200@60

(certified DVI cables, such as MolexTM cables are recommended)

Video input


Signal strength  T.M.D.S +/- 0.4Vpp

Min/Max level T.M.D.S  2.9V/3.3V

impedance 100 Ω

Enter the EDID using the system default EDID

The maximum DC bias error is 15mV

Recommended maximum input distance of less than 36 meters at 1600x1200@60

(certified DVI cables, such as Molex TM cables are recommended)

Video output


Maximum power consumption: 50W max

bit drop time(Falltime) <0.3Tbit (20%--80%)

Maximum transmission delay 5nS(±1nS)

Switching speed 200 ns (maximum time)

Signal Type: DVI-D all-digital T.M.D.S signal in the DVI 1.0 specification

Control the kind

Serial control interface RS-232, 9-pin female D-mount

Baud Rate & Protocol Baud Rate: 9600, Data Bits: 8 Bits, Stop Bits: 1, No Parity Bits

Serial control port structure 2 = TX, 3 = RX, 5 = GND


Power supply 100VAC ~ 240VAC, 50/60 Hz, international adaptive power supply

Temperature Storage and use temperatures: -20℃ ~ +70°C

Humidity Humidity for storage and use:10% ~ 90%

Chassis size(mm) 430(L)X262(W)X178(H)

The weight of the product is about 11kg

Mean time between failures of 30,000 hours

Warranty: 1 year free warranty, lifetime maintenance
