KVM network HDMI with audio
GF-TPHD141K

The GEFFEN KVM Network HDMI Audio Extender uses digital uncompressed technology to extend the DVI (HDMI, VGA) video signal, USB, audio and RS232 signals of the computer host to the remote end of 100 meters away through a single network cable, so that users can use the computer remotely.

Detail

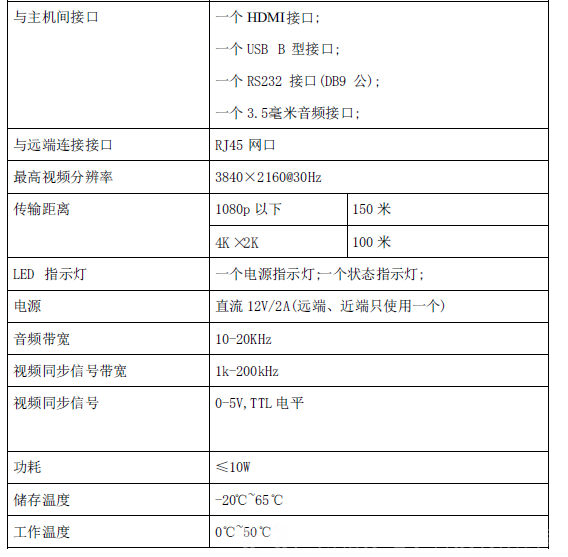

Specification

The product consists of a local end and a remote end, which are used in pairs.
The transmission system uses digital uncompressed transmission technology, and the maximum video resolution can reach 4KX2K (3840 ×2160@30Hz). GEFFEN TPHD series can be widely used in multimedia systems, surveillance fields, large-screen advertising, education, banking and securities systems, etc.

■ Extend HDMI, USB, RS232, audio and other signals, up to 100 meters.
■ Using HDBaseT transmission technology, the image is clear and smooth, without delay, and has strong anti-interference ability.
■ Use a single network cable (CAT5E, CAT6, CAT7) for transmission, low cost.
■ Support Full HD video 1080P@60Hz, 3D, 4K × 2K (3840×2160@30Hz).
■ Support USB2.0 transmission, and provide four USB ports on the Remote end, any device that supports USB2.0.
■ Full-duplex RS232 transmission.
■ Support HDCP, CEC, 24-bit color depth.
■ Support LPCM 7.1 audio, Dolby True HD, Dolby® Digita®l Plus, and DTS-HD ®
MasterAudio™ pass-through.
■ Support network cable power supply, only need to supply power to the Local or Remote end.
