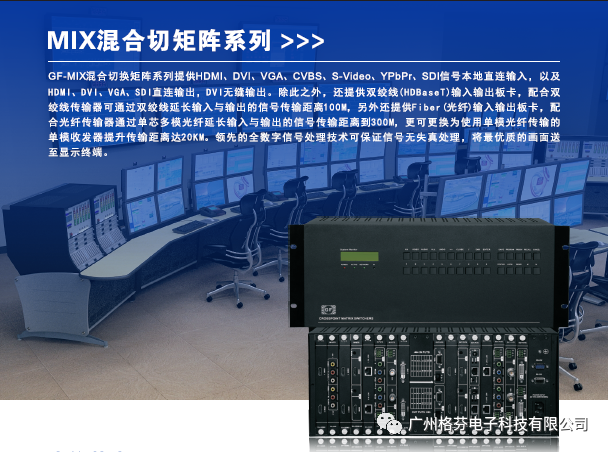

GEFFEN seamless high-definition hybrid 4K audio and video integrated matrix switching system adopts large-scale DSP+FPGA array pure hardware technology architecture, no operating system, which can avoid industrial control system crash and blue screen.
●The matrix host can be configured with modular input and output signal cards, one card and 2-way board configuration, supports multi-channel audio and video switching interfaces, and can be hot-swappable and plug-and-play.
●Pure hardware structure, no operating system, adaptive various signal input and output cards, color restoration and enhancement effect through HDR technology.
●Seamless signal card can be configured for real-time switching to ensure that there is no black point in the image switching interval and achieve the effect of instantaneous switching.
●The product control mode is flexible and diverse: button control, infrared remote control, serial port control, optional network card support TCP and built-in GUI user operation interface supports cross-platform control and management, supports Android, IOS, Windows system, and does not need to install any software and plug-ins.
●Support the acquisition of 4K60hz signal format, the output is completely up to 4K ultra-high definition, pixel-level synchronous transmission, no compression, no frame loss, no jamming, to provide users with perfect and detailed image display effect.
●Support HDMI, VGA, DVI, SDI, HDBaseT POE, AV, chromatic aberration, optical fiber input and output signal cards, and easily solve the long-distance transmission of signals.
●Support EDID rewritable and EDID adaptive functions, better adapt to the diverse display devices in the field, and improve compatibility.
●Support key locking to prevent misoperation.
●Support scenario-based control, one-key storage, one-key call, scene polling, and power-off memory function.
*Independent automatic signal compensation technology can greatly improve the differential mode transmission loss in the range of 1.5GHz.
*Provide the function of self-test of each module and operation of the equipment.
●Support audio and video separation, audio and video synthesis transmission. The independent audio interface supports audio input fusion, audio output de-embedding, and mute by control. The volume can be adjusted.
●Support screen splicing, through the independent image magnification algorithm, the image output resolution can be adjusted.
●Smooth air duct design and exhaust system ensure 7*24 hours of uninterrupted and stable work at full load.
