Programmable Controller-Geffen Maxtrix Control System Manufactory CN

Programmable Controller
GF-NCC

GF-NCC is the new generation of main control system. Using the advanced integrated technology, it provides high speed precise control environment, a variety of programmable control interface and open user programming environment, so as to complete complex control interface programming.

● 32 bit embedded processor allocation frequency reaches 210MHz,built-in 8M memory and 2M memory FLASH, can run complex logic instruction cache.
● Provide open programmable control platform, humanized Chinese operation interface and interactive control structure.
● Powerful built-in programmable interface makes programmable central control computer can control almost all of the external equipment (including the third party equipment).
● The user can establish its own infrared code database, also can download the latest infrared code from the GEFFEN library website, can realize infrared logic control of pair of codes by one key.
● Support 1, 3 road GF-NET control bus, can be extended up to 32 network equipment (such as: touch screen, dimmer, power controller, volume control, etc.).
● Built-in IR learning function.
● The metal chassis design, in line with international standards, can be installed in any chassis, cabinets of 19 ".
● Through the expansion of Ethernet control interface to realize computer remote control.

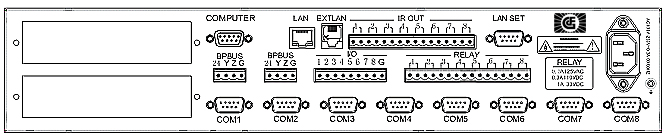

GF-NCC has ARM7 CPU,8M ram. Equippedwith a plurality of programmable serial, support the expansion cardterminal controlled equipment with serial, infrared, IO, digital relayinterface.

GF-NCC also provides two expansion slots for installingthe expansion card.

lt can be installed with telephone control card, AVmatrix card, soundcard and so on, more powerful than before.
