●4 HDMI inputs, 1 HDMI output
● Support HDMI 2.0, maximum resolution to 3840x2160@60, HDCP 2.2
● 5 window modes, PBP, 3xWIN, 4xWIN, SINGLE, PIP
● Seamless switching of single window, fast switching of multiple windows
● Support independent audio selection and volume control, support DD+, DTS, DTS-HD, LPCM and AC3, up to 7.1 channels
● Support OSD menu navigation
● Support a variety of EDID and HDCP operations
EDID and HDCP processing

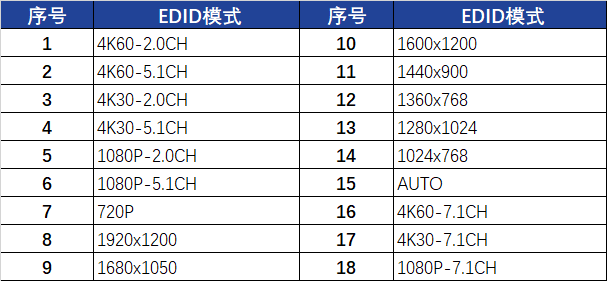

Users can select the following EDID modes through serial port commands or OSD menus
The HDMI output supports 3 HDCP options: FORCE-1.4, FORCE-2.2, FORCE-OFF. The user can select through the RS232 command.
Video and audio
The switcher supports a maximum input resolution of 3840x2160@60, supports a variety of audio formats such as LPCM, AC3,DD+, DTS, DTS-HD, up to 7.1 channels, and supports independent audio selection.

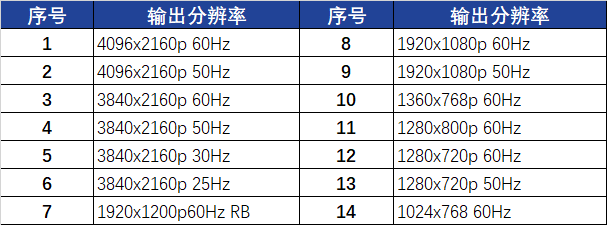

The user can control the volume of the audio in LPCM format. The following output resolution selections are supported.
Multi-window
It has a variety of fenestration modes. For different multi-window modes, users can perform different operations:
SINGLE: Source selection
PIP: Source selection, sprite size and position
PBP, 3xWIN, 4xWIN: Source Selection, Display Scale, Mode Selection

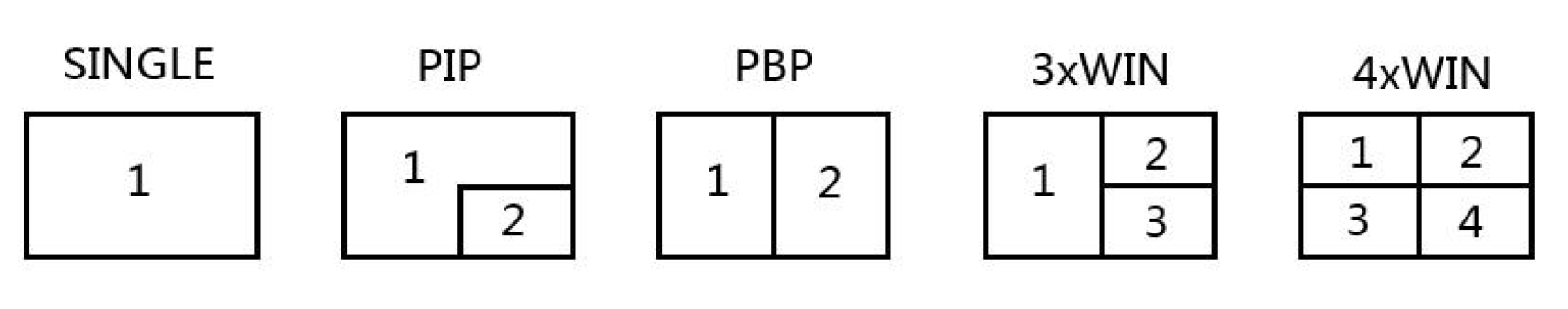

Users can choose from serial port commands or OSD menus, and the default layout is as follows:
Front:
Back:
Side:
Remote control
