●Rail structure, can be directly installed in the distribution box.
●It has 8 channels of 16A relay control output function, built-in 8 channels of high-power, anti-surge relay, the maximum continuous current of a single channel is 16A, and the anti-surge and anti-surge standard supports TV-5 (UL/CUL).
●It has the function of real-time display of power supply, communication and load status.
●It has the function of multi-loop sequential delay start to avoid the impact on the power grid caused by simultaneous starting.
●It has a power-off memory function, and when the power supply is restored, the output state before the power failure is restored.
●It has the function of manual switch control for each channel, which needs to be controlled by pressing and holding down, with anti-misoperation.
●Each corresponding dry contact signal access.
●With local and remote programming and testing functions.
● Support online refresh program.
●CAN-BUS bus communication is used to realize real-time control and reliable data communication between nodes.
●Support RS485 communication (optional).
●Standard 35mm rail mounting.

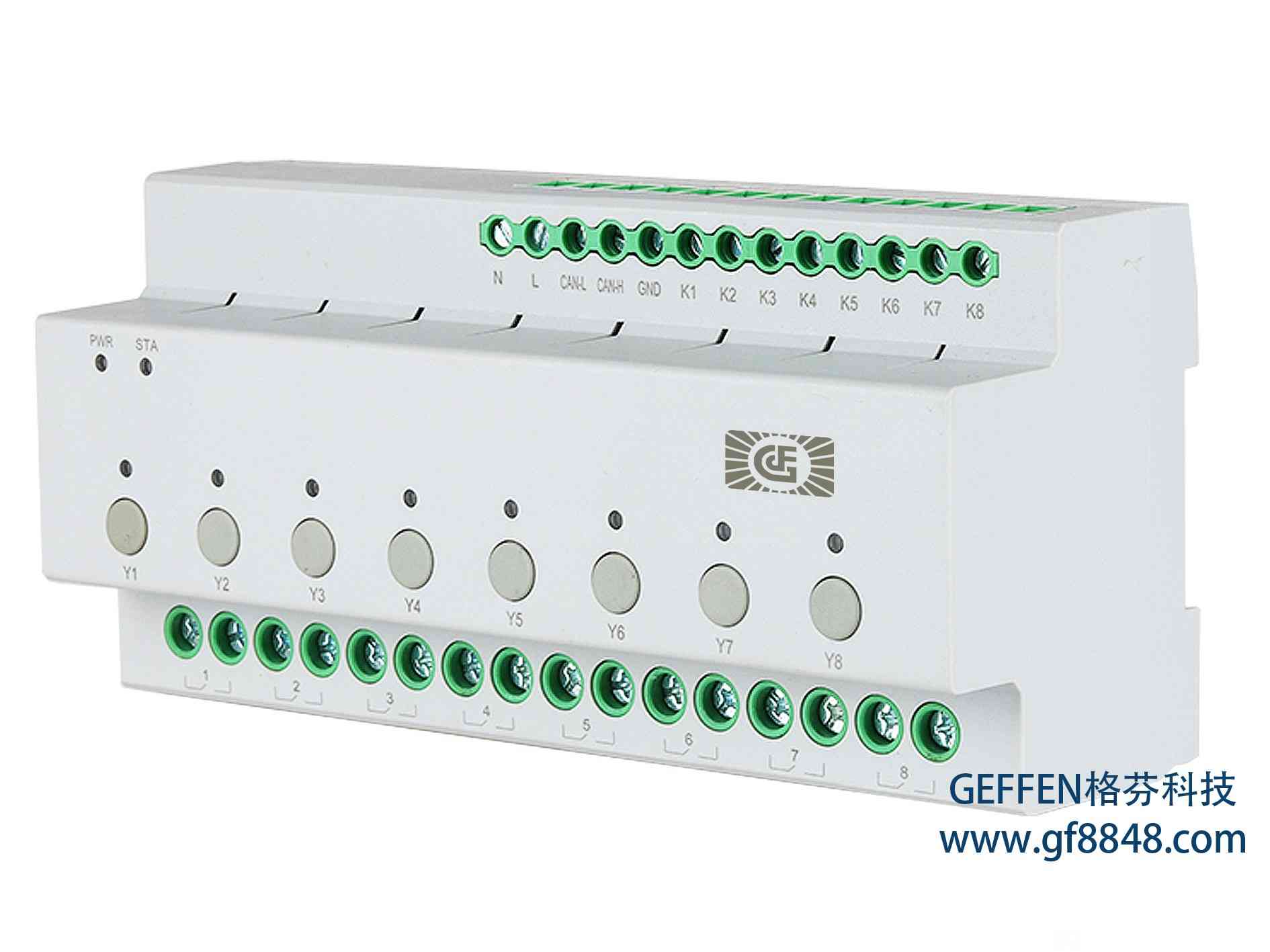

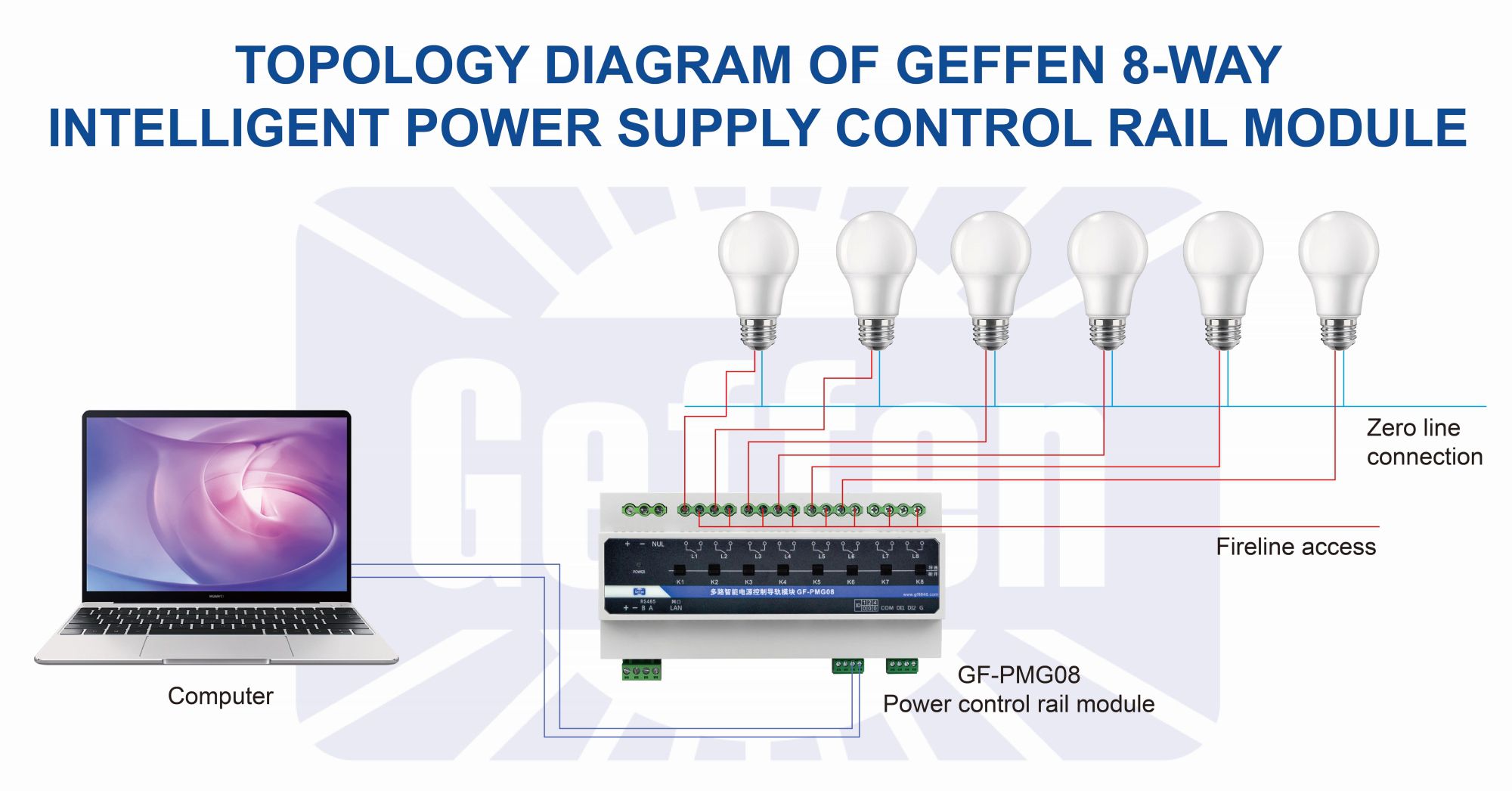

GF-PMG08 is a rail installation, with 8 relay output control, each circuit separately controls the switch of 6600W lighting equipment, with the manual control button of each channel, you need to press and hold for 1s to respond, to prevent misoperation, the corresponding LED indicator will show the output status, and has a switch detection interface corresponding to each channel, each switch signal can be defined in 3 modes, which are strong cut, strong start, and switch. CAN-BUS bus communication is adopted, and the products need to be connected hand in hand.
●Working voltage: DC24V 50HZ
●Output circuit: 8 channels
●Output power: 3500W (resistive capacity) 250VAC / anti-surge current 80A 125VAC.
●Relay maximum switching current: 16A
●Relay electrical durability: 100,000 times
●Switching detection interface: 4 dry contacts
●Static power consumption: 0.4W
●Maximum power consumption: 2.2W
●Communication interface: CAN bus/RS485 (optional)
● Maximum number of network connection devices: 64

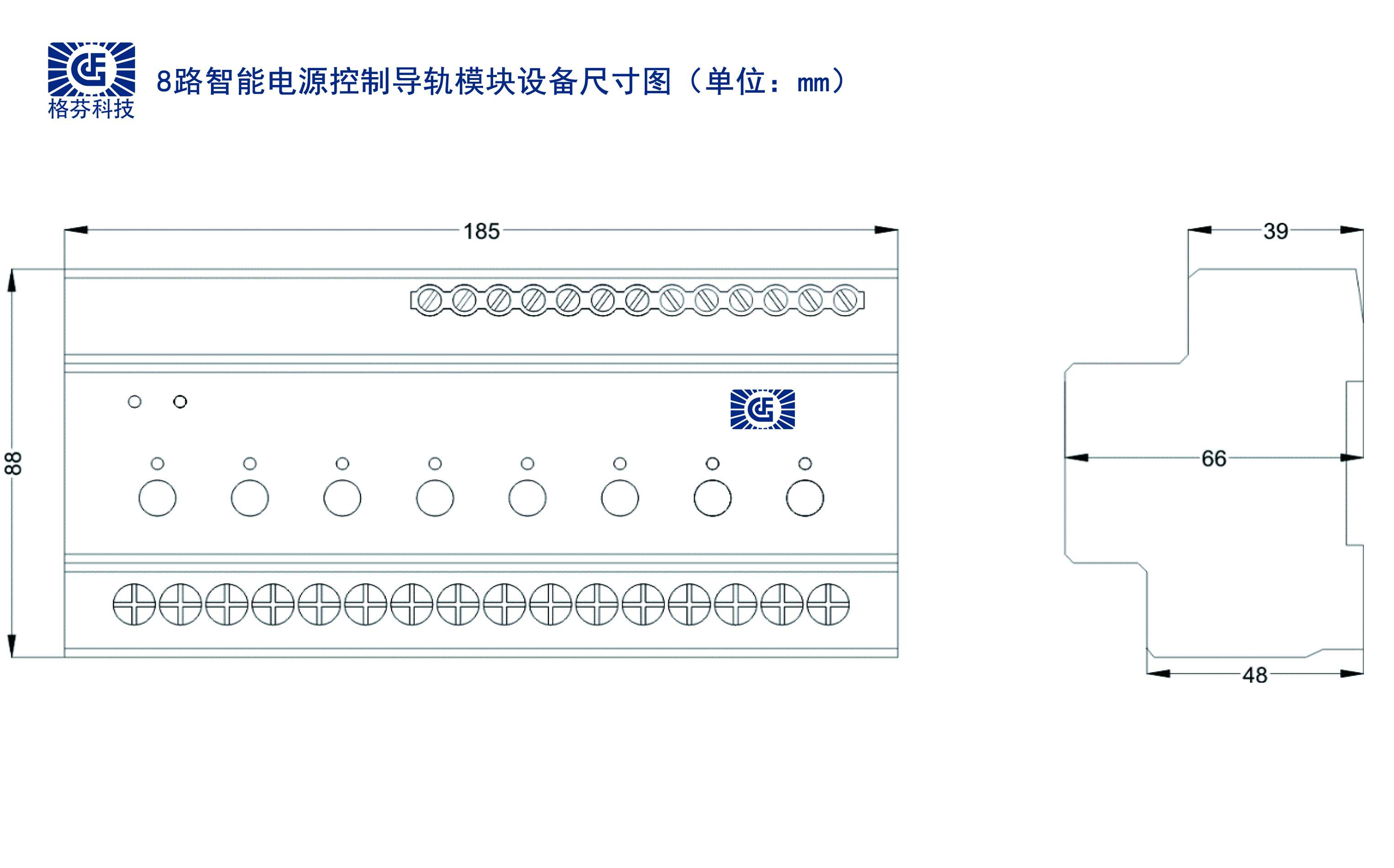

●Appearance size: 185*88*66mm (L*W*H)
●Product weight: 558g
