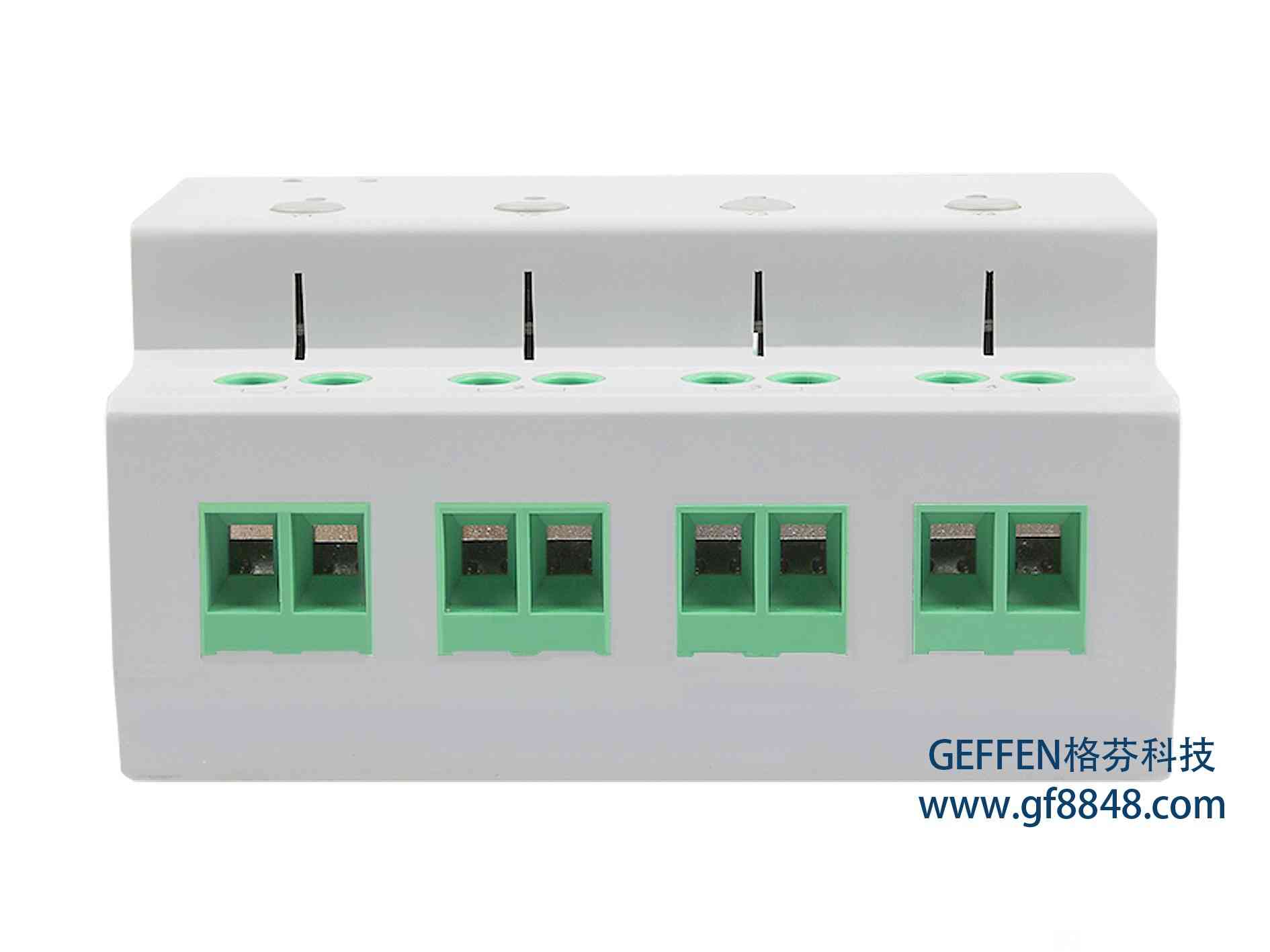

4 intelligent power control rail modules
GF-PMG04
GF-PMG04 is a rail installation, with 4 relay output control, each circuit separately controls the switch of 6600W lighting equipment, with manual control buttons for each channel, and each switch signal can be defined in 3 modes, which are strong cut, strong start, and switch. CAN-BUS bus communication is adopted, and the products need to be connected hand in hand.

1. It has the function of 4-channel 30A relay control output.
2. It has the function of real-time display of power supply, communication and load status.
3. It has the function of multi-loop sequential delay start to avoid the impact on the power grid caused by simultaneous starting.
4. It has the function of power-off memory, and when the power supply is restored, the output state before the power failure is restored.
5. It has the function of manual switch control for each channel, which needs to be controlled by pressing and holding down, with anti-misoperation.
6. It has the corresponding dry contact signal access for each channel.
7. It has local and remote programming and testing functions.
8. Support online refresh program.
9. Adopt CAN-BUS bus communication to realize real-time control and reliable data communication between nodes.
10. Standard 35mm guide rail installation.


GF-PMG04 is a rail installation, with 4 relay output control, each loop separately controls the switch of 6600W lighting equipment, with the manual control button of each channel, you need to press and hold for 1s to respond, to prevent misoperation, the corresponding LED indicator will show the output status, and it has a switch detection interface corresponding to each channel, and each switch signal can be defined in 3 modes, which are strong cut, strong start, and switch. CAN-BUS bus communication is adopted, and the products need to be connected hand in hand.

1. Working voltage: AC 220V 50HZ
2. Output circuit: 4 channels
3. Output power: 6600W (resistive capacity) 250VAC / anti-surge current 80A 125VAC per channel.
4. Maximum switching current of relay: 30A
5. Relay electrical durability: 100,000 times
6. Switching detection interface: 4 dry contacts
7. Static power consumption: 0.4W
8. Maximum power consumption: 2.2W
9. Communication interface: CAN bus
10. Maximum number of network connection devices: 64
11. Appearance size: 126*88*66mm(L*W*H)
12. Product weight: 392g
