Utilizing the SPMS8 8-Channel Intelligent Power Relay for Weak-to-Strong Current Control

The SPMS8 8-channel intelligent power relay is a highly efficient and reliable solution for controlling strong current circuits with weak current signals. Below is a detailed introduction to this approach:

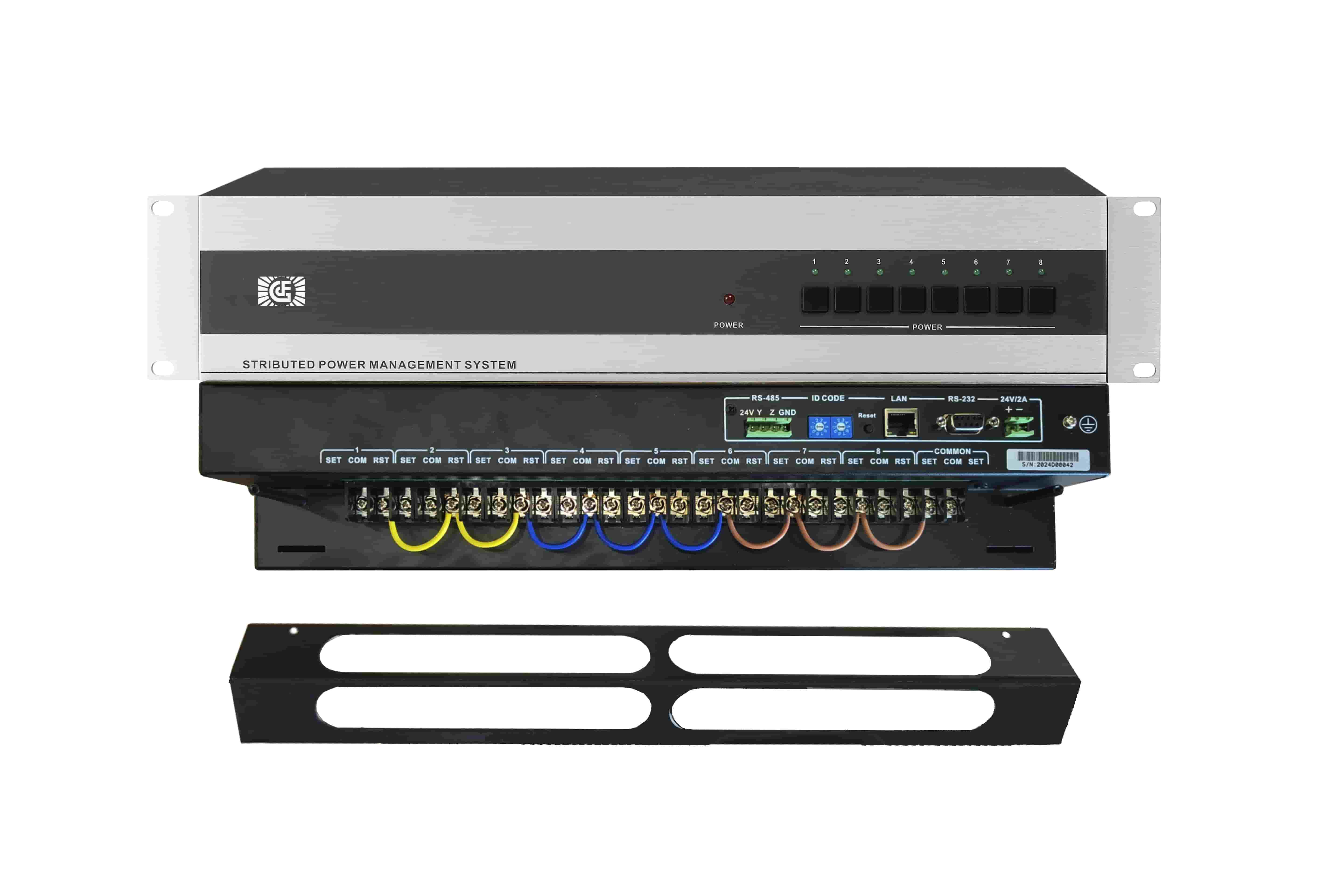

Overview of the SPMS8 8-Channel Intelligent Power Relay

The SPMS8 8-channel intelligent power relay is a programmable switching module specifically designed to meet the complex and diverse needs of conference venues and control systems. It provides eight independent relay channels, each capable of controlling a separate strong current power supply. By connecting with a central control system, the SPMS8 can achieve timed and delayed closure operations for peripheral devices, thereby managing and protecting them.

Realization of Weak-to-Strong Current Control Circuits

1. Wiring Method:
   • Weak Current Side Wiring: The weak current side of the SPMS8 typically communicates with a programmable host or PC via RS232, RS485, or network interfaces. These interfaces allow it to receive instructions from the control host, thereby controlling the relays.
   • Strong Current Side Wiring: The strong current side is directly connected to the strong current devices that need to be controlled, such as motors, lights, heaters, etc. Each relay channel is equipped with three terminals (common terminal COM, normally open contact NO, normally closed contact NC) for complex circuit connections.
2. Working Principle:
   • When the control host sends an instruction, the SPMS8 receives the signal and, through internal logic processing, determines which relay channel needs to be closed or opened.
   • Upon receiving the control signal, the relay channel's coil generates a magnetic field, attracting the contacts to close or open, thereby controlling the on/off state of the strong current circuit.
3. Control Mode:
   • The SPMS8 supports both automatic and manual control modes. In automatic mode, the relay channels operate according to preset programs or logic; in manual mode, they can be directly controlled via external buttons or switches.

Application Scenarios

The SPMS8 8-channel intelligent power relay is widely used in industrial automation, building automation, smart homes, and other fields. For example, in industrial automation, it can be used to control various equipment on the production line, such as motors and solenoid valves; in building automation, it can be used to control lighting systems, security systems, HVAC systems, etc.

Precautions

1. Electrical Isolation: To ensure electrical isolation between the weak current control circuit and the strong current controlled circuit, appropriate isolation measures such as optocouplers should be used.
2. Load Capacity: When selecting the SPMS8, ensure that its single-channel maximum load capacity meets the application requirements. Generally, the single-channel maximum load of the SPMS8 can reach 2200W, sufficient for most application scenarios.
3. Maintenance and Management: Regularly check the working status of the relays, promptly replace damaged ones, and keep the control unit clean and dry to ensure its long-term stable operation.

In summary, utilizing the SPMS8 8-channel intelligent power relay for weak-to-strong current control circuits is a feasible and efficient method. It not only improves the reliability and stability of the control system but also reduces maintenance costs and enhances management efficiency.
