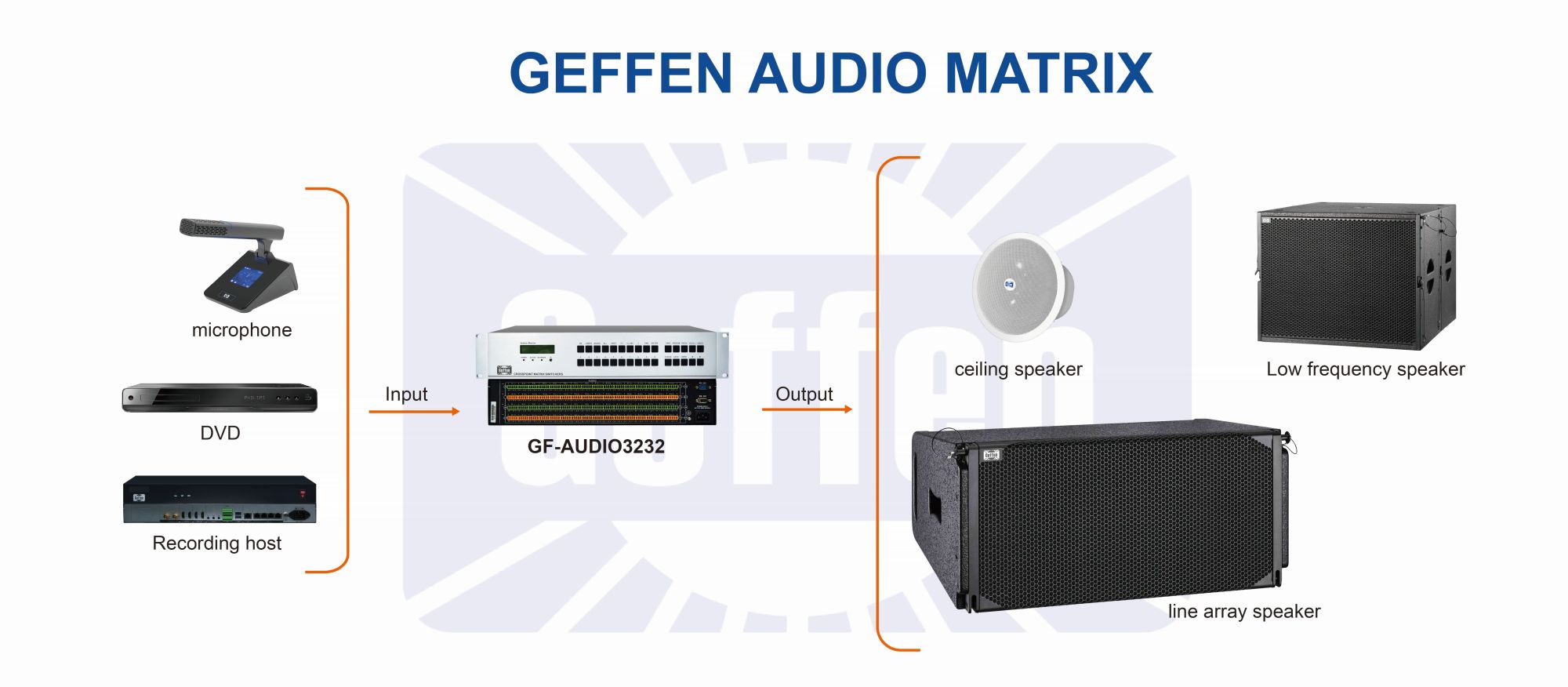

Audio matrices can address the following issues: operators of conference systems are often non-professionals without audio technology backgrounds; various subsystems in conference rooms are usually integrated into central control systems, and sound reinforcement systems are no exception; room environments are diverse and microphone quantities are large, so the system requires robust audio processing capabilities. The system can realize logical functions such as camera linkage and automatic microphone mixing management.

Thanks to these system features, audio matrix products with powerful signal processing capabilities, convenient centralized control, and easy operation are widely used in conference room systems, completely replacing traditional analog sound reinforcement system equipment. They are extensively applied in command and control centers, university teaching buildings, home theaters, large-scale residential systems, commercial entertainment systems, and many other high-end venues.

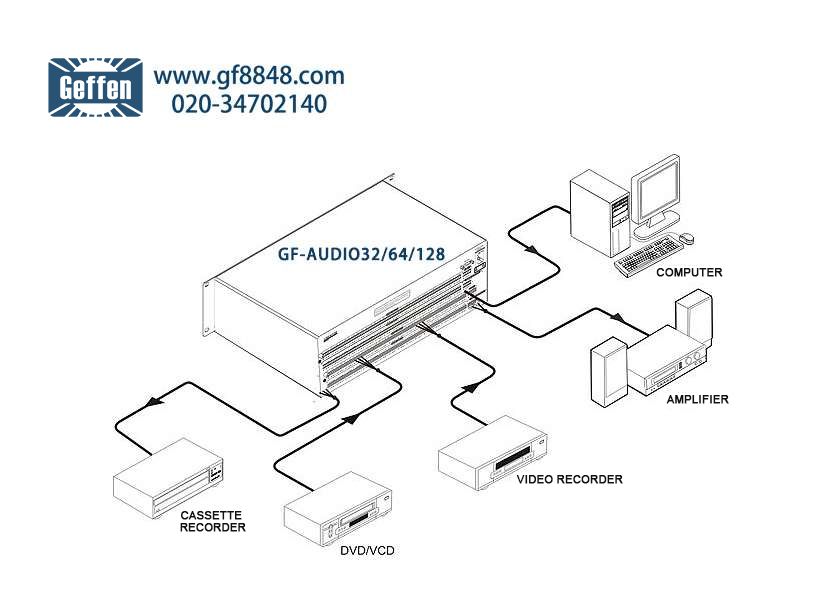

●Supports a maximum of 128/64/32/16-channel audio signal input and 128/64/32/16-channel audio signal output

●GF-AUDIO1616: 16-channel audio input and 16-channel audio output, supporting full cross-switching

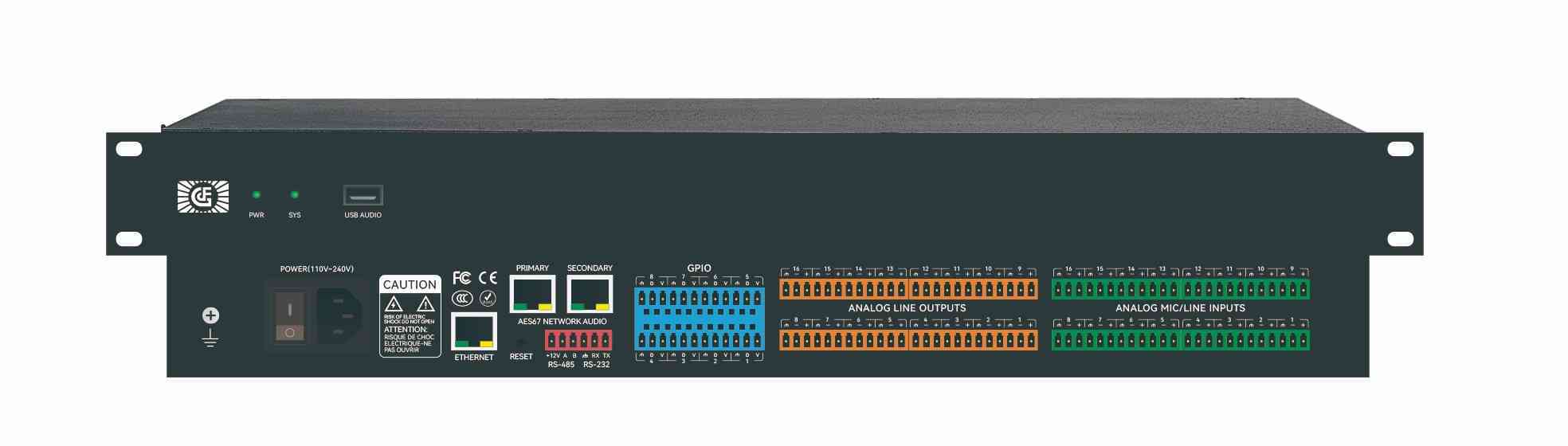

●Both audio signal input and output terminals adopt 5-position 3.8mm Phoenix connectors; professional audio operational amplifier post-processing chips are used to deliver mellow and full sound quality

●Supported audio signal types: stereo, with balanced or unbalanced connection methods

●Supports fast switching operations

●Adopts 1500KV ESD electrostatic protection circuit to prevent device damage caused by hot swapping

●Uses programmable logic array circuits to enable arbitrary cross-switching

●Supports synchronous or separate switching of audio and video signals

●Supports channel switching permission settings; audio and video channel switching permissions can be managed independently

Supports independent volume adjustment for each audio output channel

●Equipped with power-off memory and scene protection functions; the device can restore its pre-power-off state when restarted

●Features a keypad lock function; matrix keys can be locked via remote control to avoid misoperation by others

●Has 2 RS-232 communication interfaces with dual serial port design, enabling quicker and more convenient connection with large-screen splicing systems

●Provides buzzer on/off settings to enable or disable sound prompts

●Adopts a large green-background LCD screen, which intuitively displays the switching status of each channel, input signal characteristics and other information for easy operation

●Offers open control protocols and protocol standards, supporting third-party and customer self-developed software control

●Built-in universal power supply

●Standard 19-inch rack-mountable design: 2U metal chassis
